Rockwell RD23 Series 5.38 Ratio (23GAWR) Axle Assembly

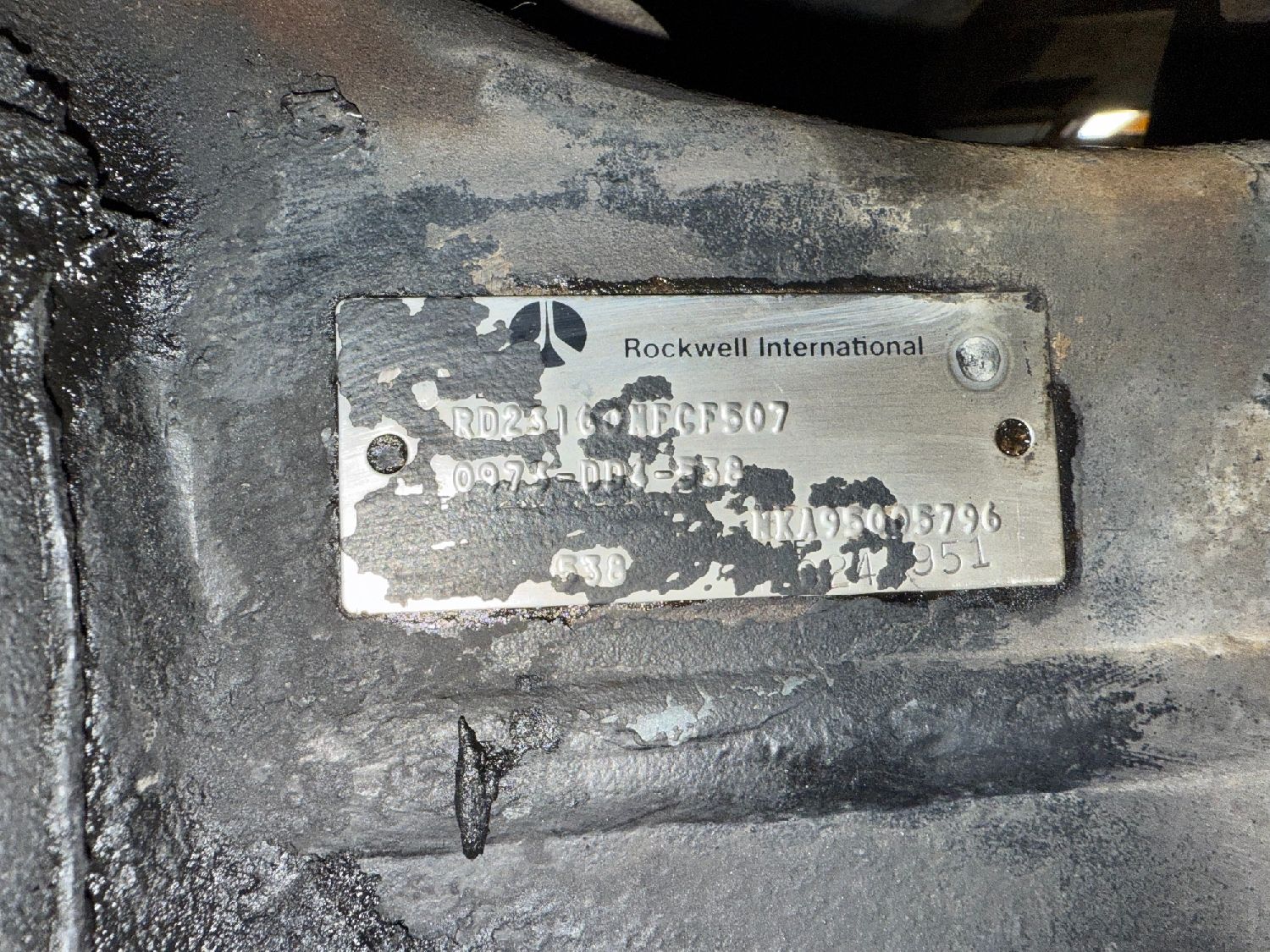

Model No: RD23160NFCF507
Cust No: 0973-DD4-538
Serial No: NKA95005796
Ratio: 5.38
024951

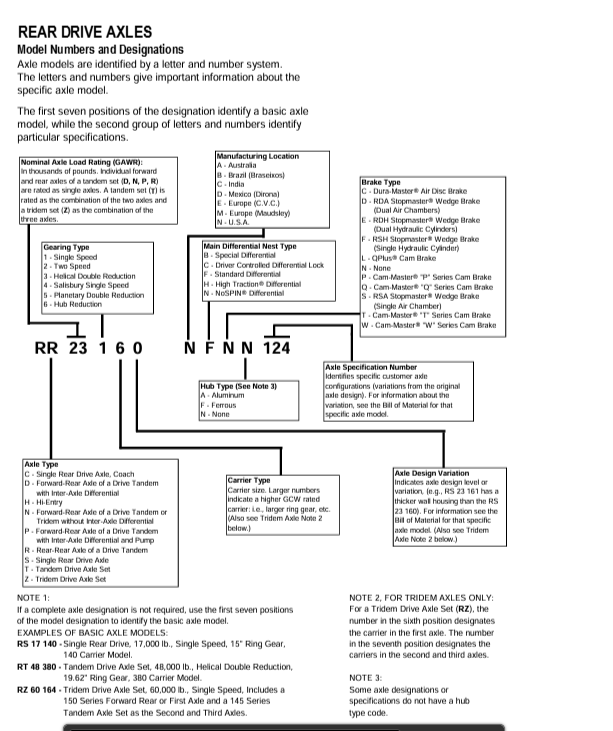

Modeling Code:
RD: Forward-Rear Axle of a Drive Tandem w/ Inter-Axle Differential
23: Nominal Axle Load Rating
1: Single Speed Gearing Type
6: Carrier Type
0: Axle Design Variation
N: Manufacturing Location - USA
F: Standard Differential Nest Type
C: Brake Type - Dura-Master Air Disc Brake
F: Hub Type - Ferrous
507: Axle Specification Number

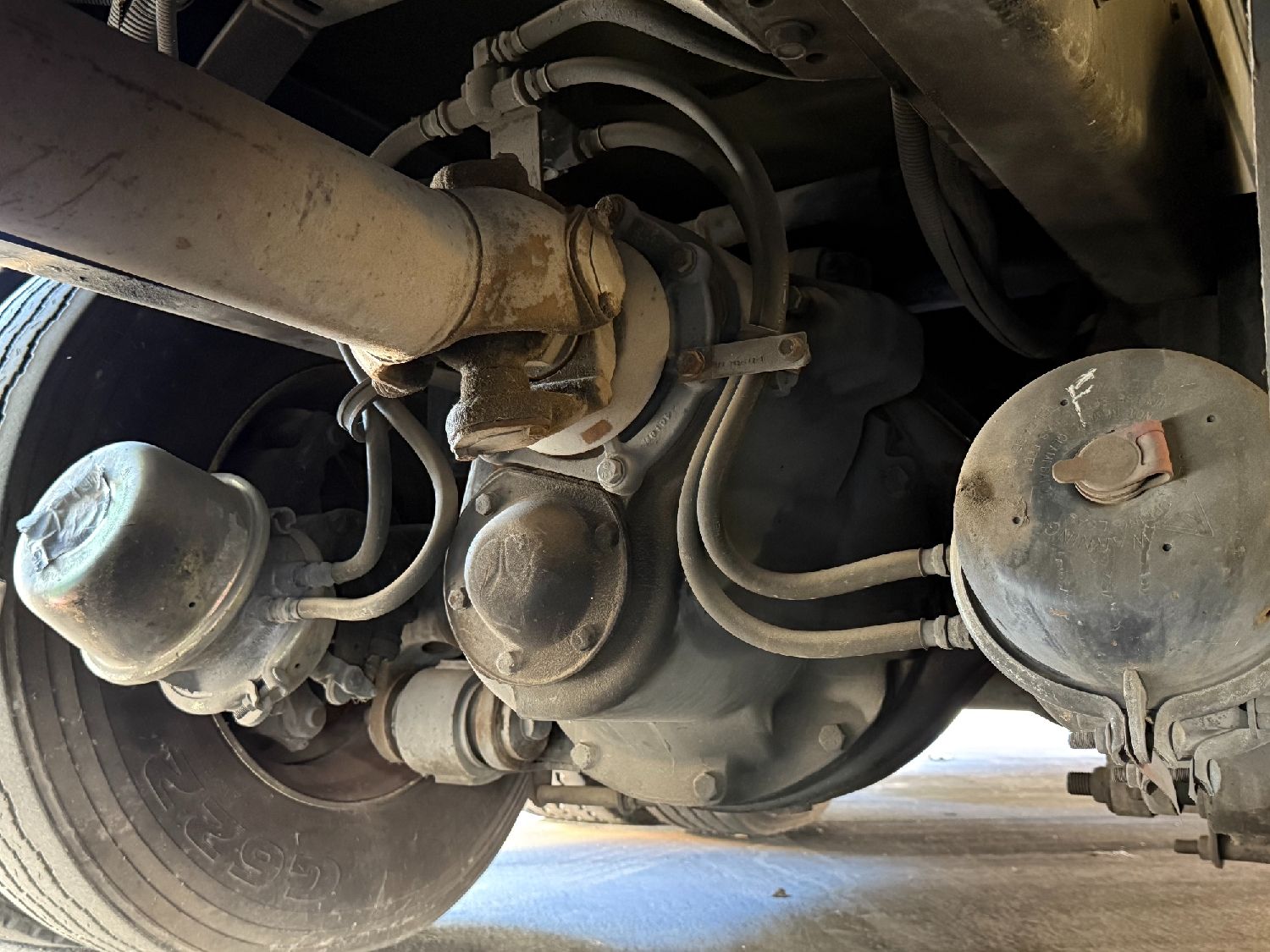

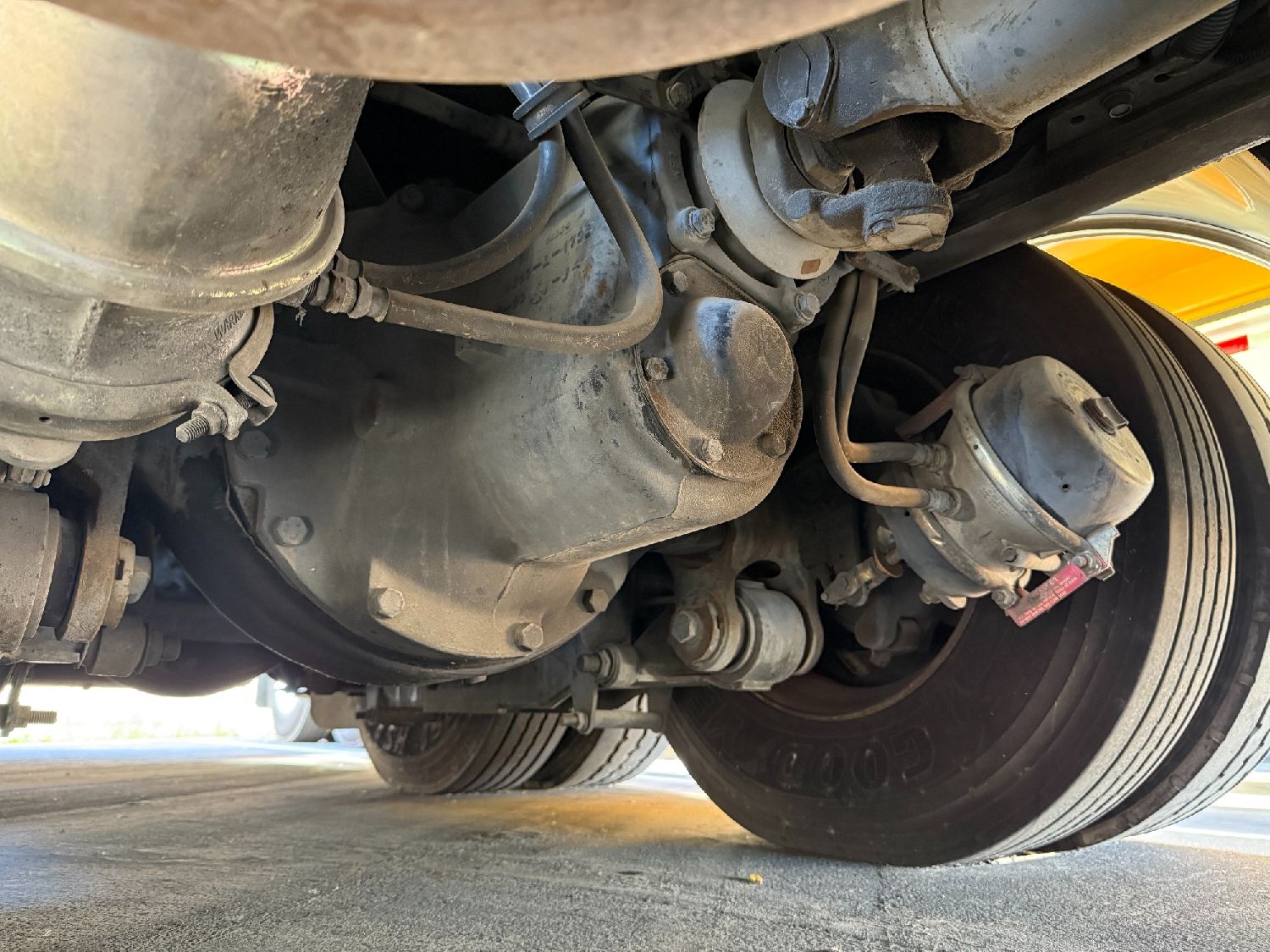

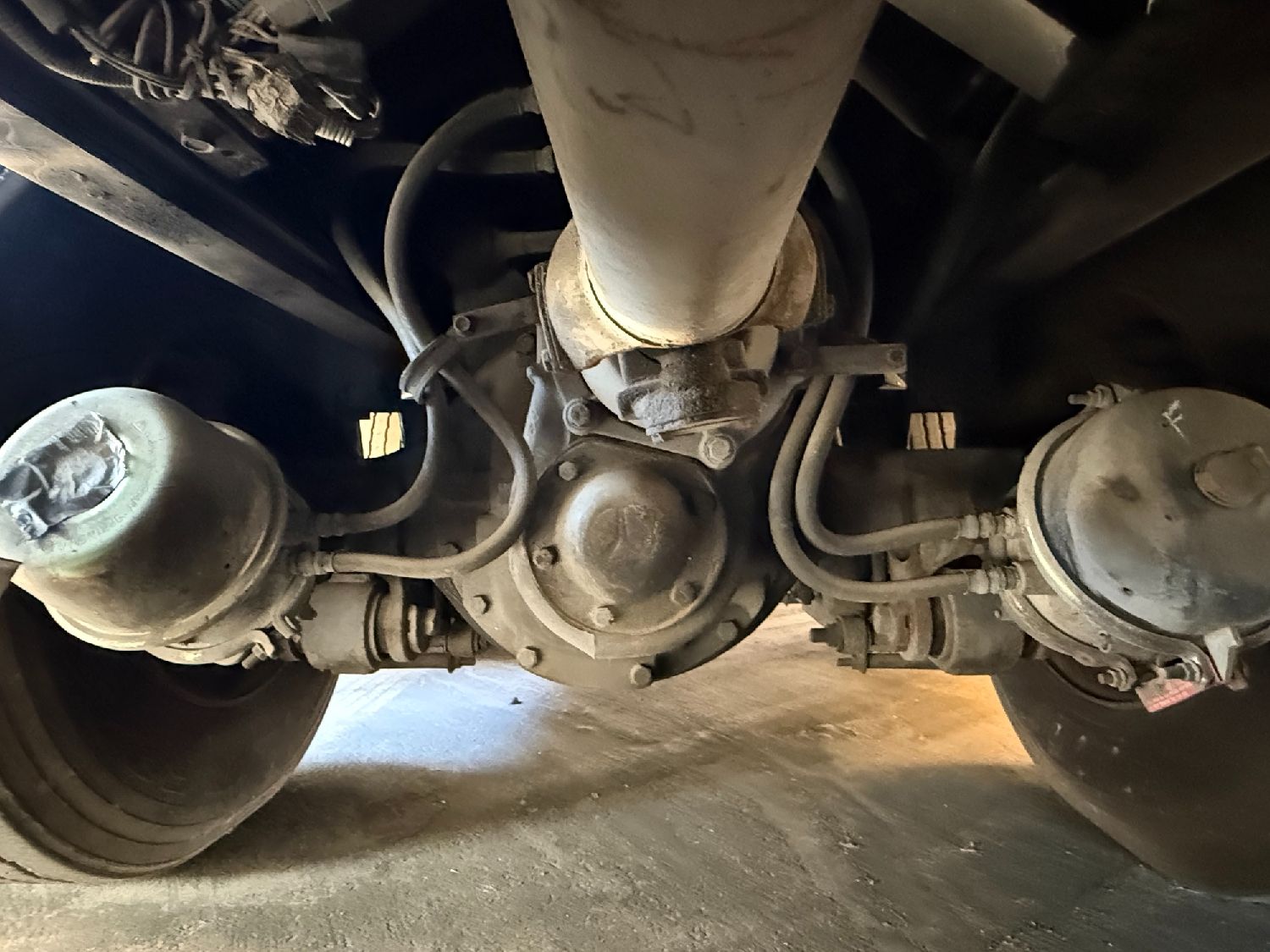

Advertised as a good used take-out. complete assembly with hubs, brake drums, and leaf springs
Used Meritor (Rockwell) RD23-160 forward-rear (front rear) differential carrier, 5.38 ratio, working well. Tag model RD23160NFCF507. 23,000 lb rated, 46-spline axle shafts and input, with inter-axle differential. It fits RT-40-160 and RT-46-160 tandems in Freightliner, International, Kenworth, Peterbilt, Mack, Volvo, Western Star, Sterling, and Autocar trucks.
This is a large freight item. Local pickup available in the Sacramento, CA area — message us to arrange. Freight shipping quoted on request; buyer responsible for freight cost on items shipped LTL.
