Auto Crane Hydraulic Lift 3203 Series
Auto Crane Part No: 320989001
Serial No: 3203H-1115-016
General Specifications:
Max Lift Capacity: 3,200bs
Moment Rating: 10,000 ft-lbs
Rotation: 370º Rotation with electric stop
Voltage: 12 vdc
Alternator: 60 amps
Battery: 100 minute reserve capacity
Cable Single Line Breaking Strength: 5,600 LBS
Ramsey Winch Model: HDG8RSC
Part No: 113004
Serial No: T31415041

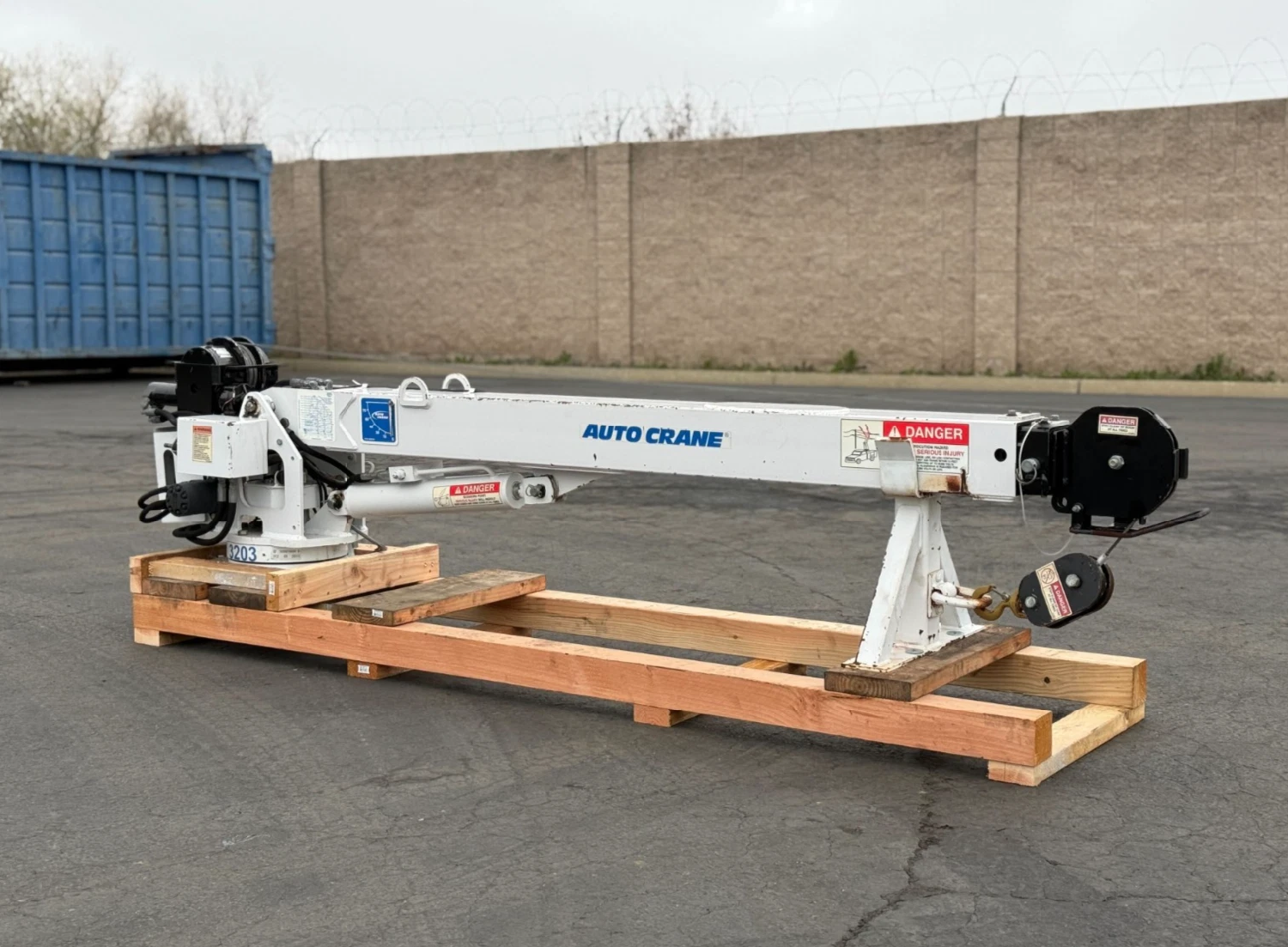

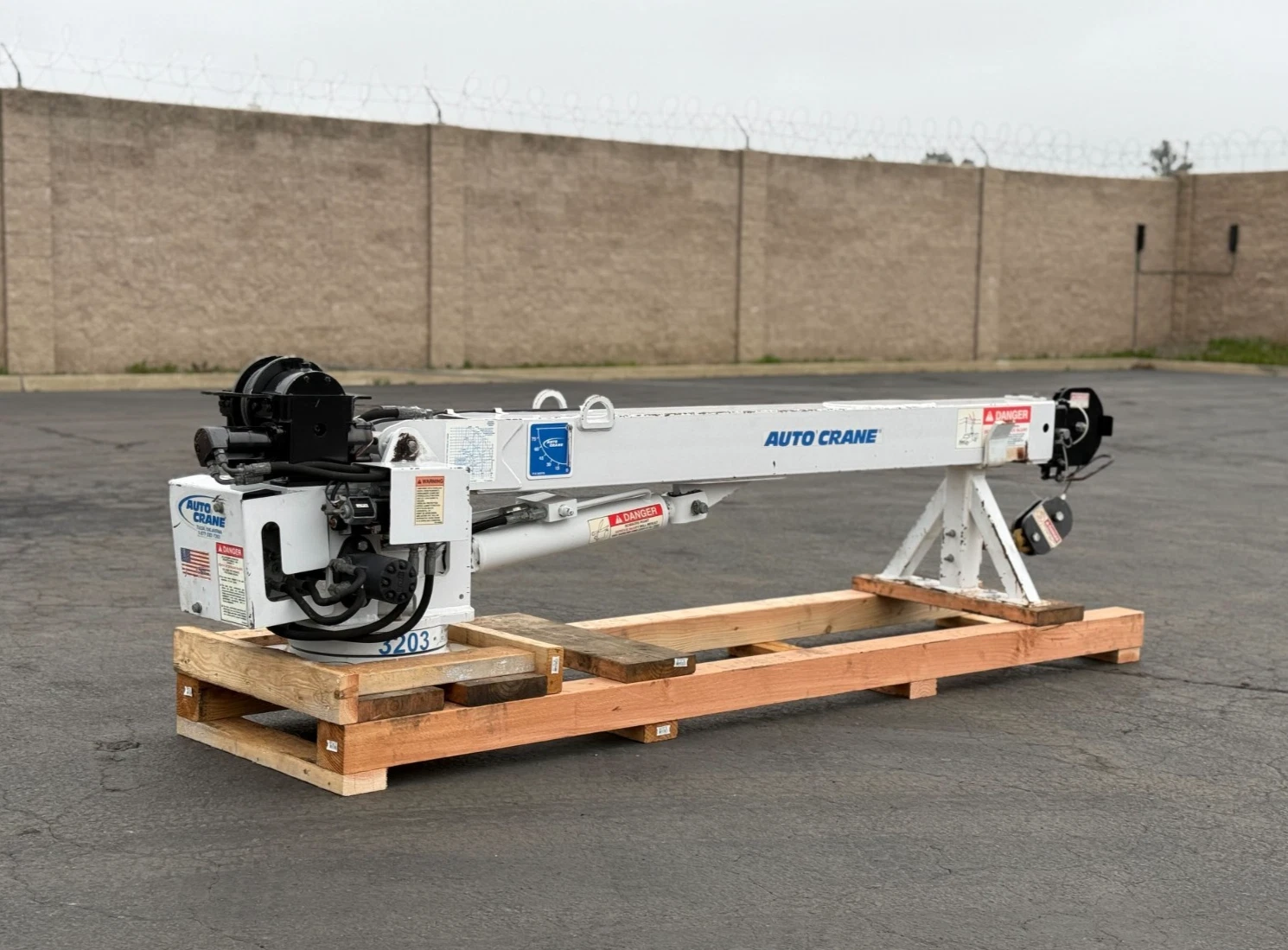

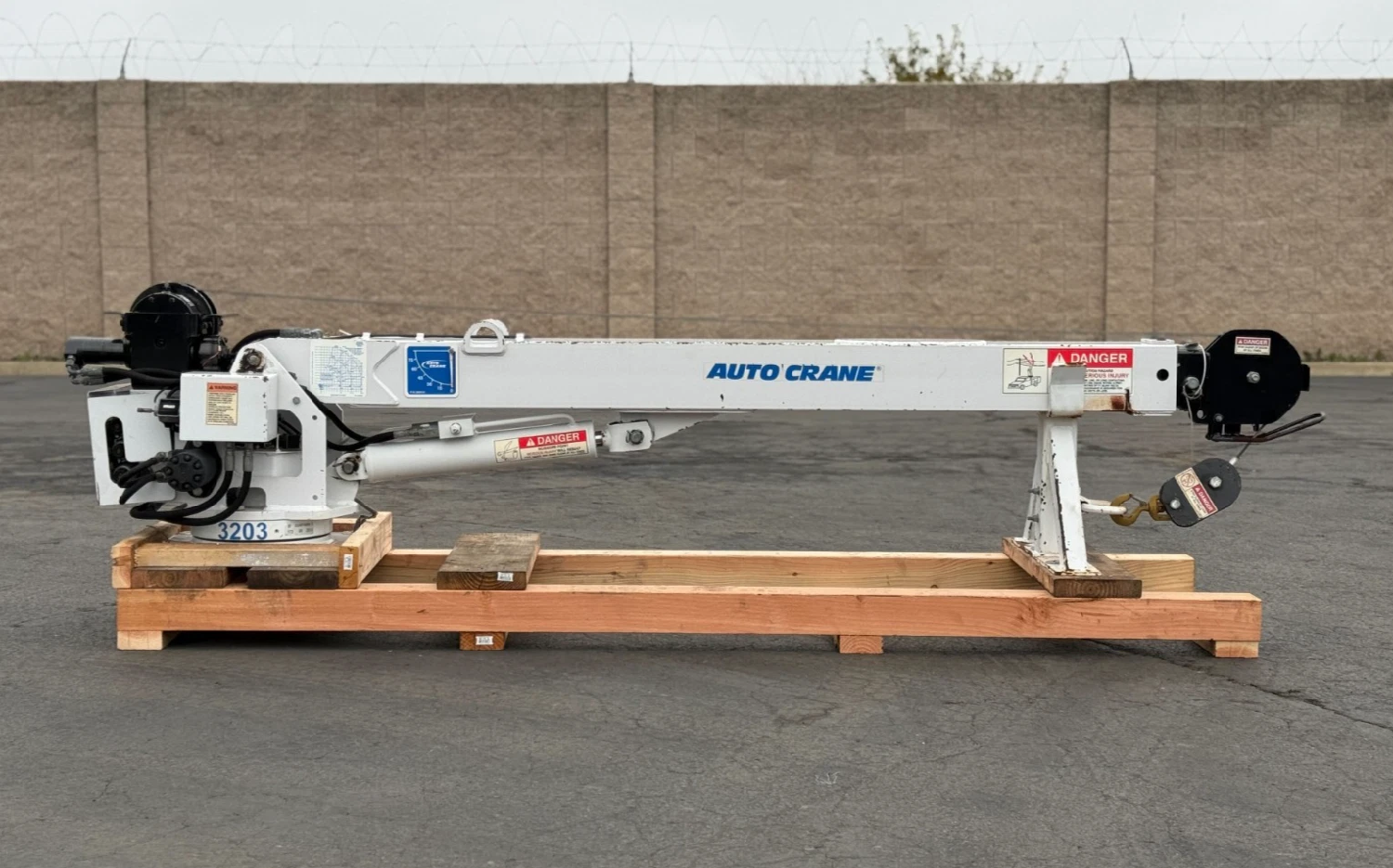

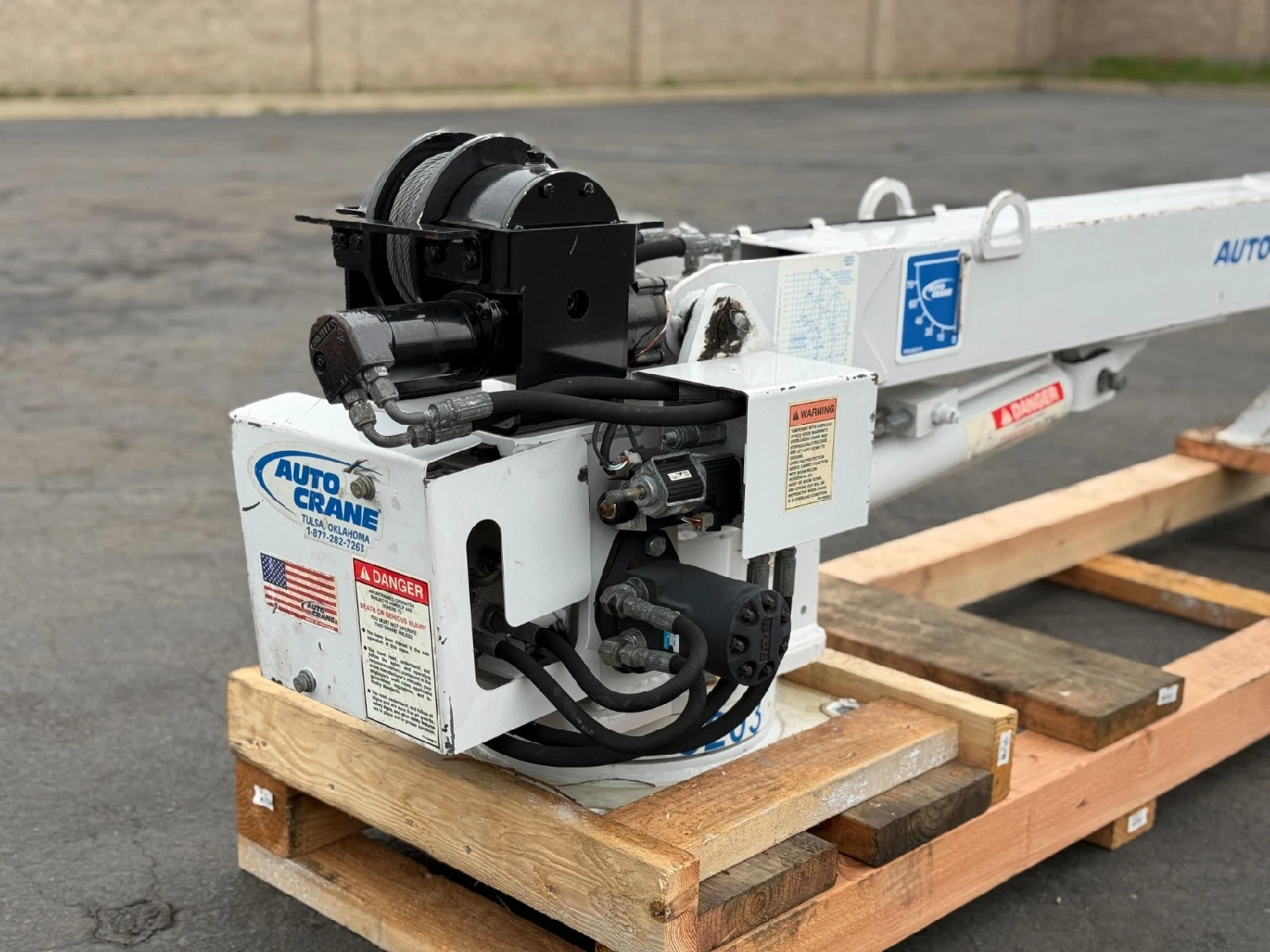

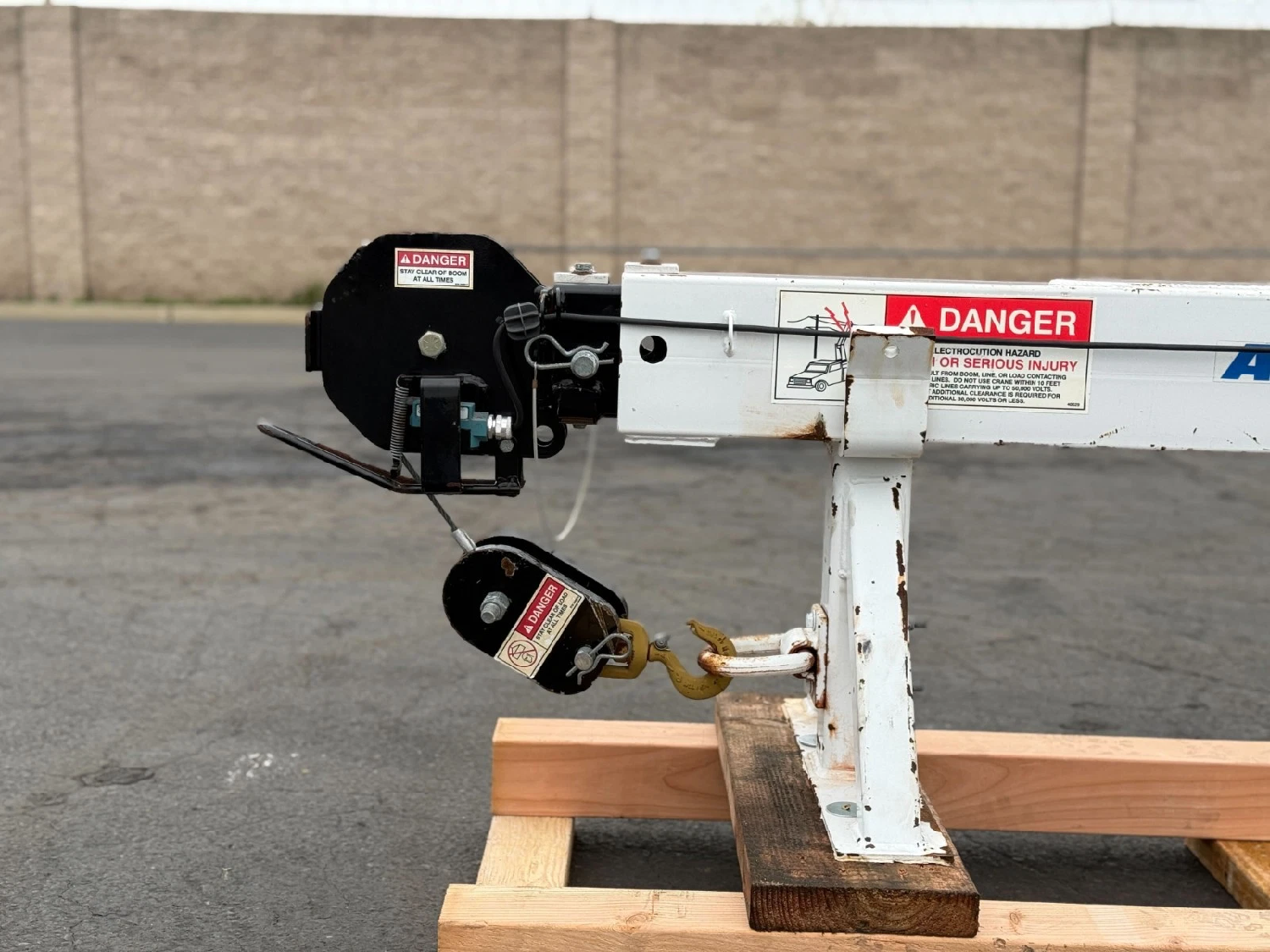

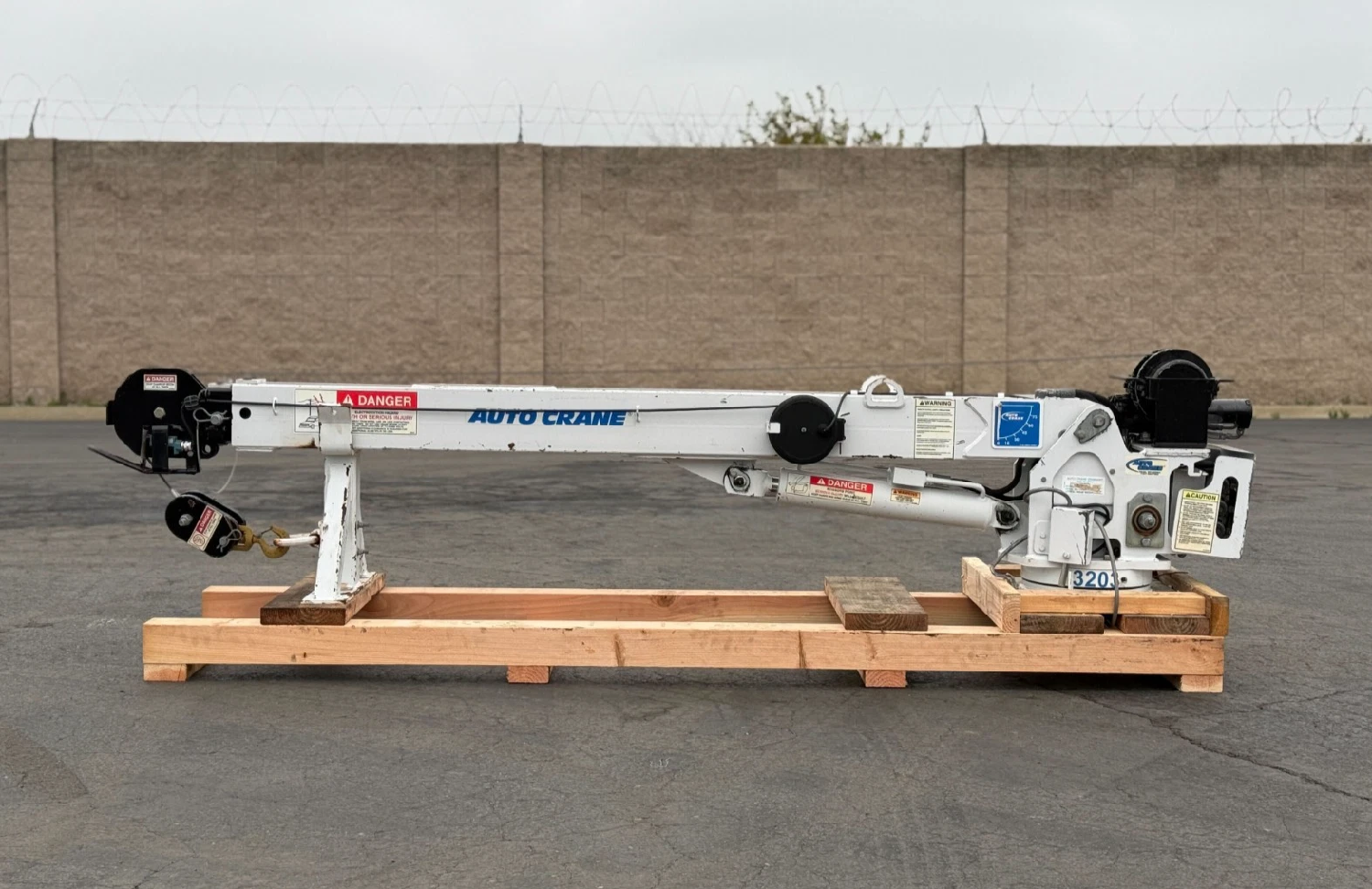

Auto Crane 3203H fully hydraulic telescoping service crane, P/N 320989001 (hardwired/pendant version).
Specs: 10,000 ft-lb rating, 3,200 lb max capacity at 3 ft. Power boom elevation, power rotation, power hoist, and power extension from 7' to 11', with manual extension to 15'. 62 ft of 7/32" aircraft cable (5,600 lb single-line break). Proportional controls with automatic overload protection. Requires truck hydraulics (5 GPM @ 2,200 psi).
This is a large freight item. Local pickup available in the Sacramento, CA area — message us to arrange. Freight shipping quoted on request; buyer responsible for freight cost on items shipped LTL.
