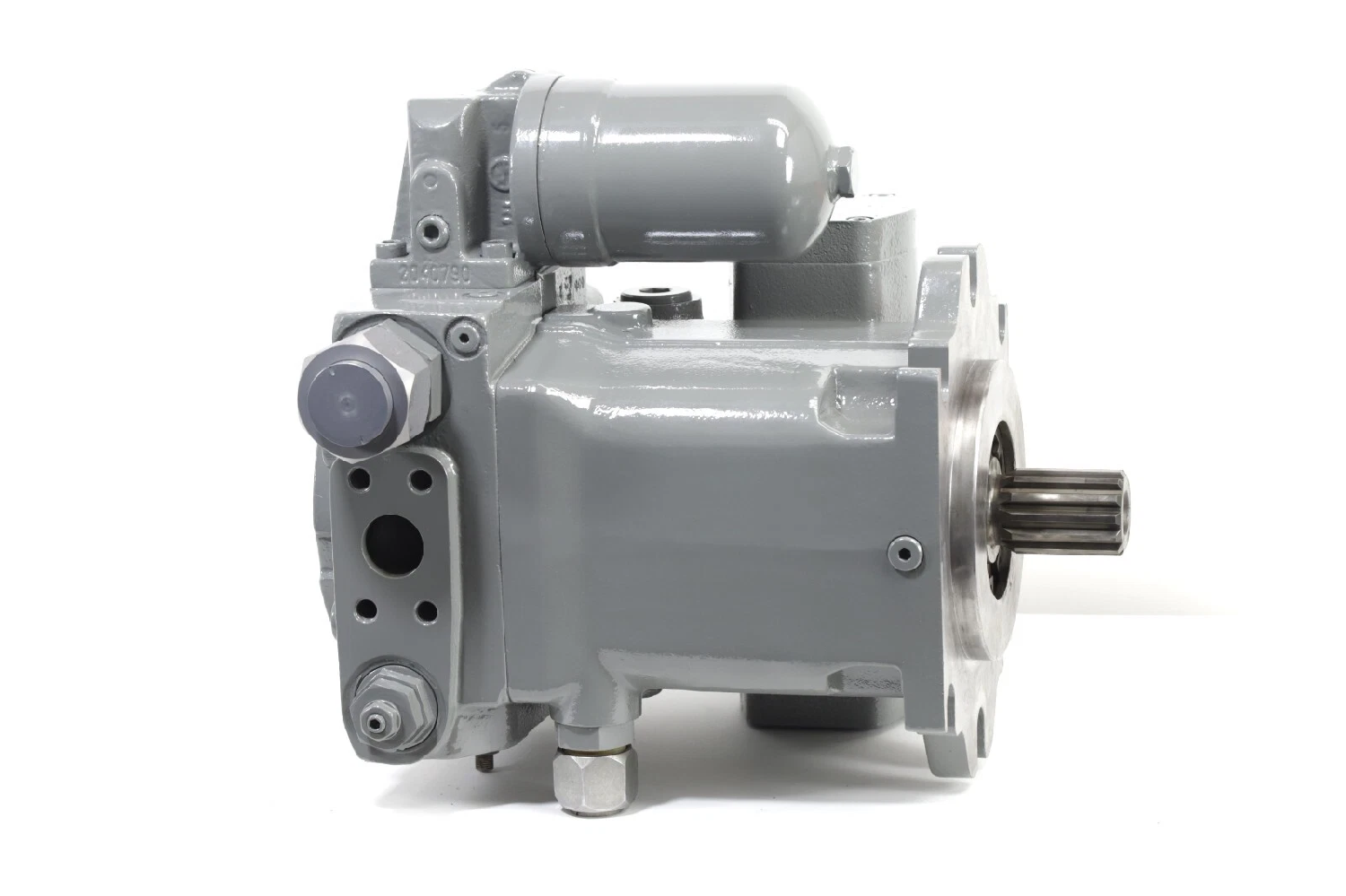

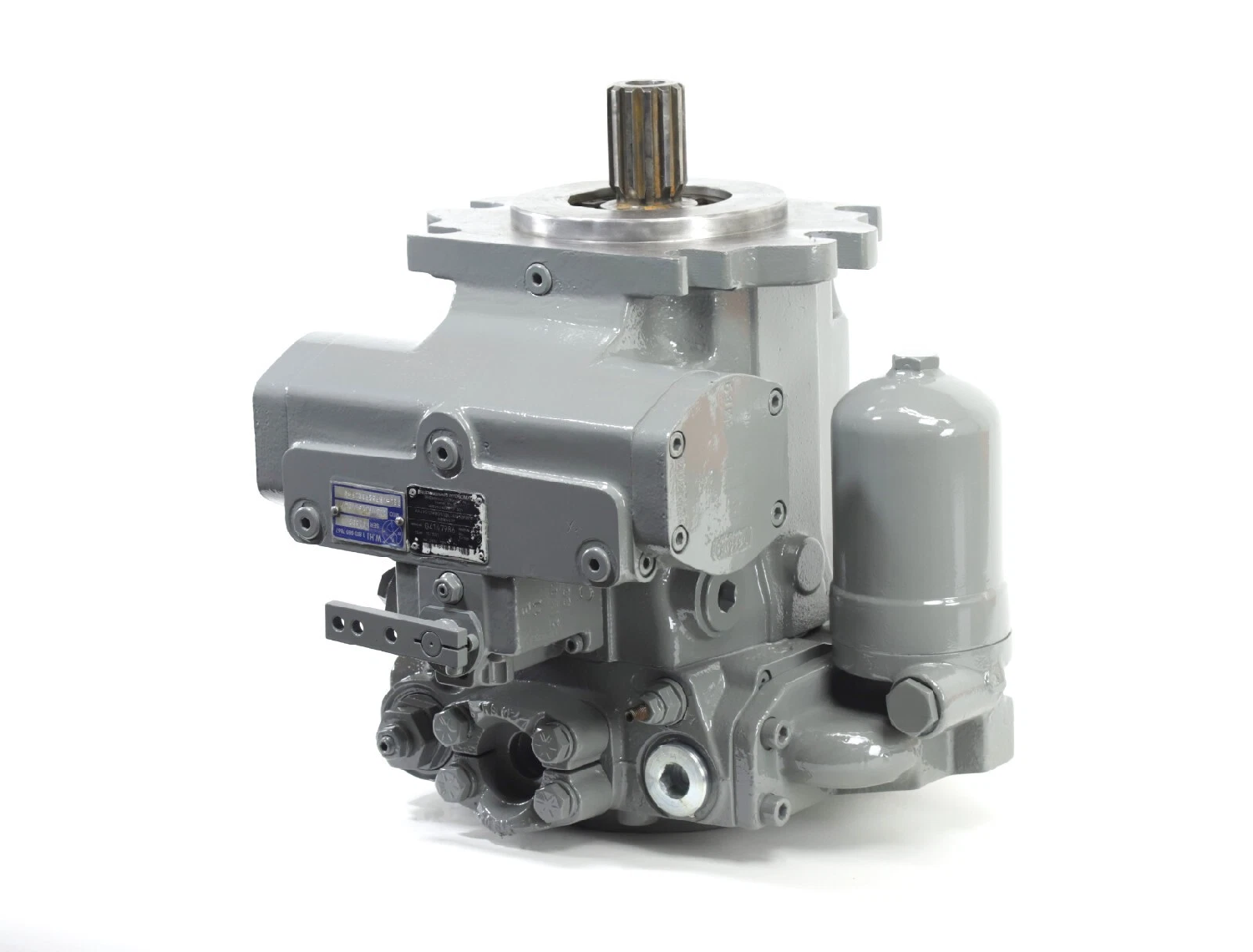

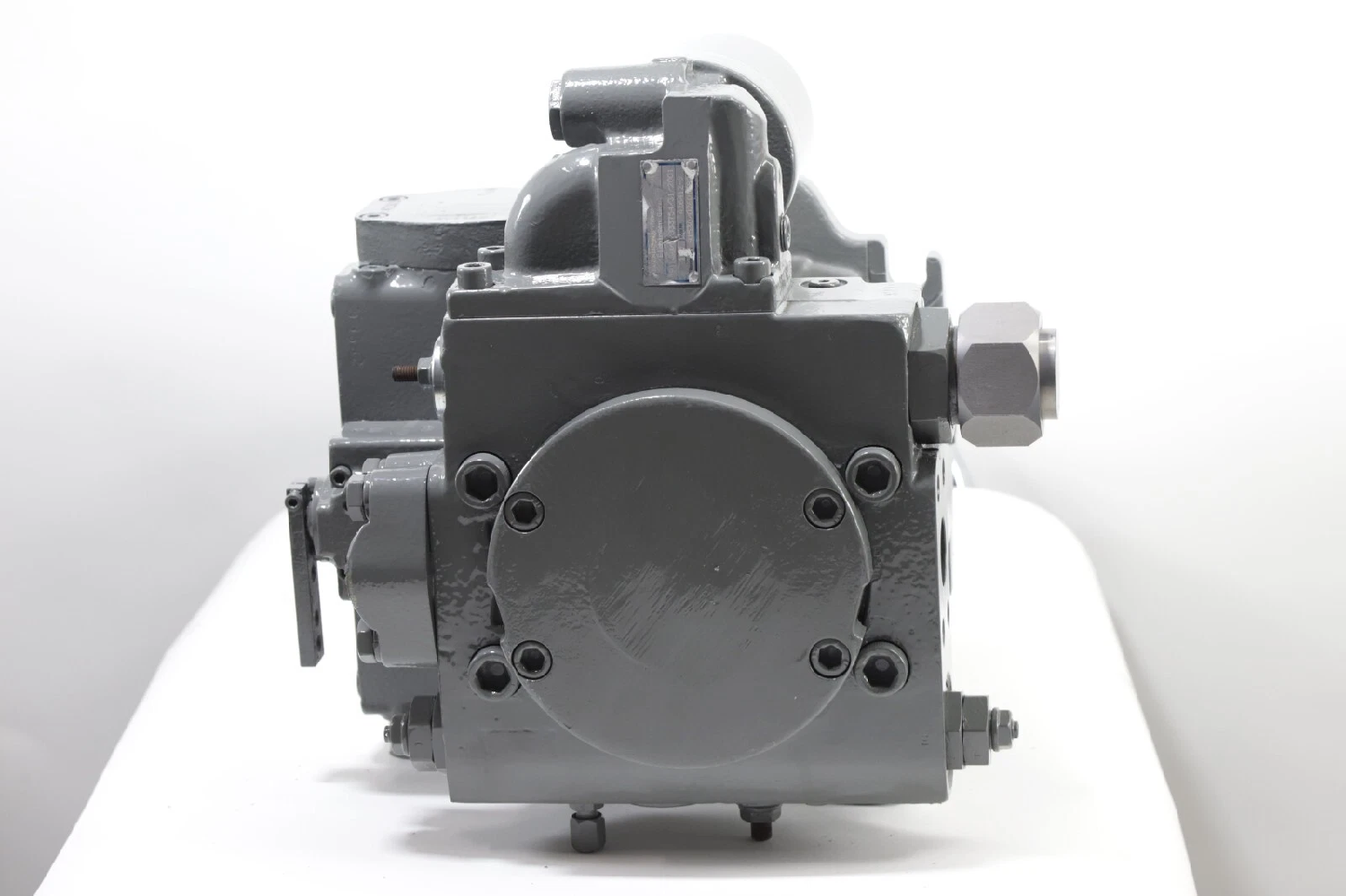

BRUENINGHAUS HYDROMATIK Mobile Applications Variable Axial Piston Pump
Model: AA4VG125HWD1/32L-NSF52F001F-S
Superseded: REXROTH R902024039

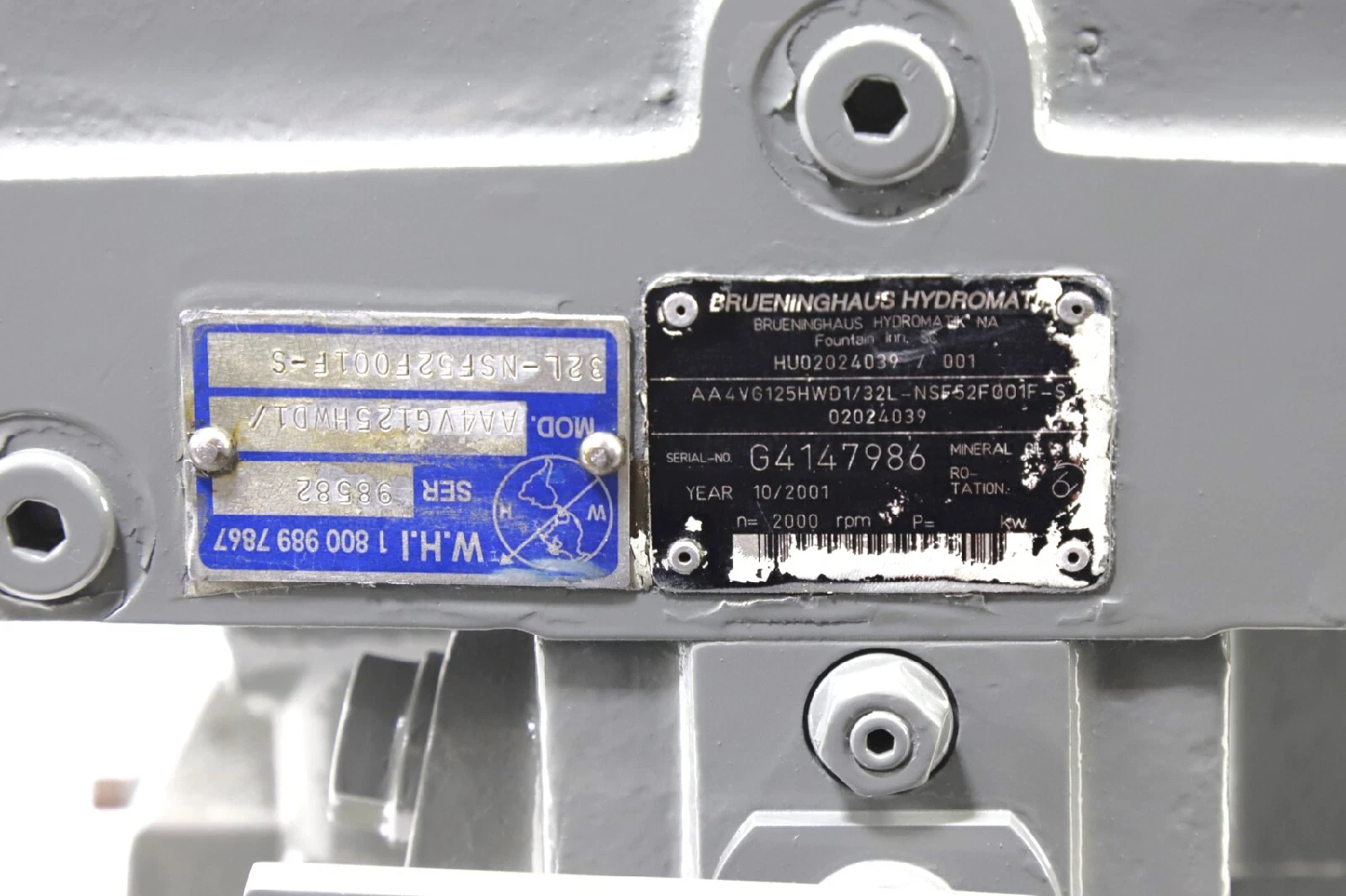

HU0204039 / 001
AA4VG125HWD1/32L-NSF52F001F-S
02024039
Serial No: G4147986
-------
W.H.I
Serial No: 98582
Model: AA4VG125HWD1/32L-NSF52F001F-S
Modeling Code
Axial Piston Unit: AA4V
Operation Mode: G
Displacement: 125 cm3/rev = 7.63 in3/rev
Control Device: Mechanical Servo
Pressure Cut Off: With Pressure cut-off (Standard)
DA Control Valve: 1 = W/O DA Control Valve
Series: 32 = Series 3
Direction Of Rotation: L = Counter Clockwise
Seals: N = NBR (nitrile-caoutchouc), shaft seal ring in FKM (fluor-caoutchouc)

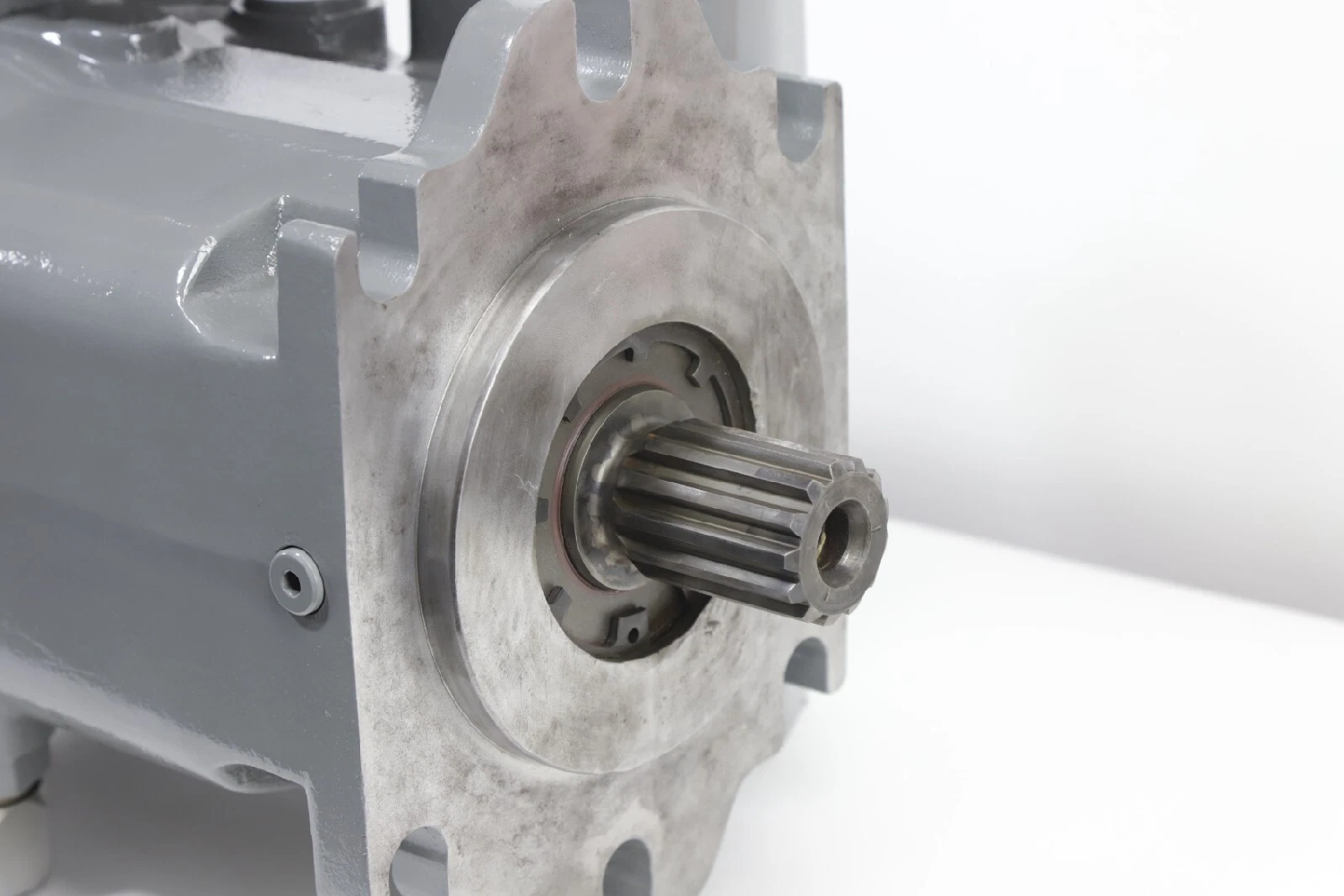

Shaft End: Splined Shaft for Single Pump
Mounting Flange: F = SAE J744 – 2+4-bolt
Service Line Ports: Suction Port S Bottom
Boost Pump: W/ Integrated Boost Pump without through Drive
Valves: 1 = W/ high-pressure relief valve pilot operated - 1450...6100 psi with bypass
Filtration: F = Filter mounted with cold start valve but without contamination indicator
Standard/Special Version: S Special version
Max GPM flow Rate: 94.1 gpm
