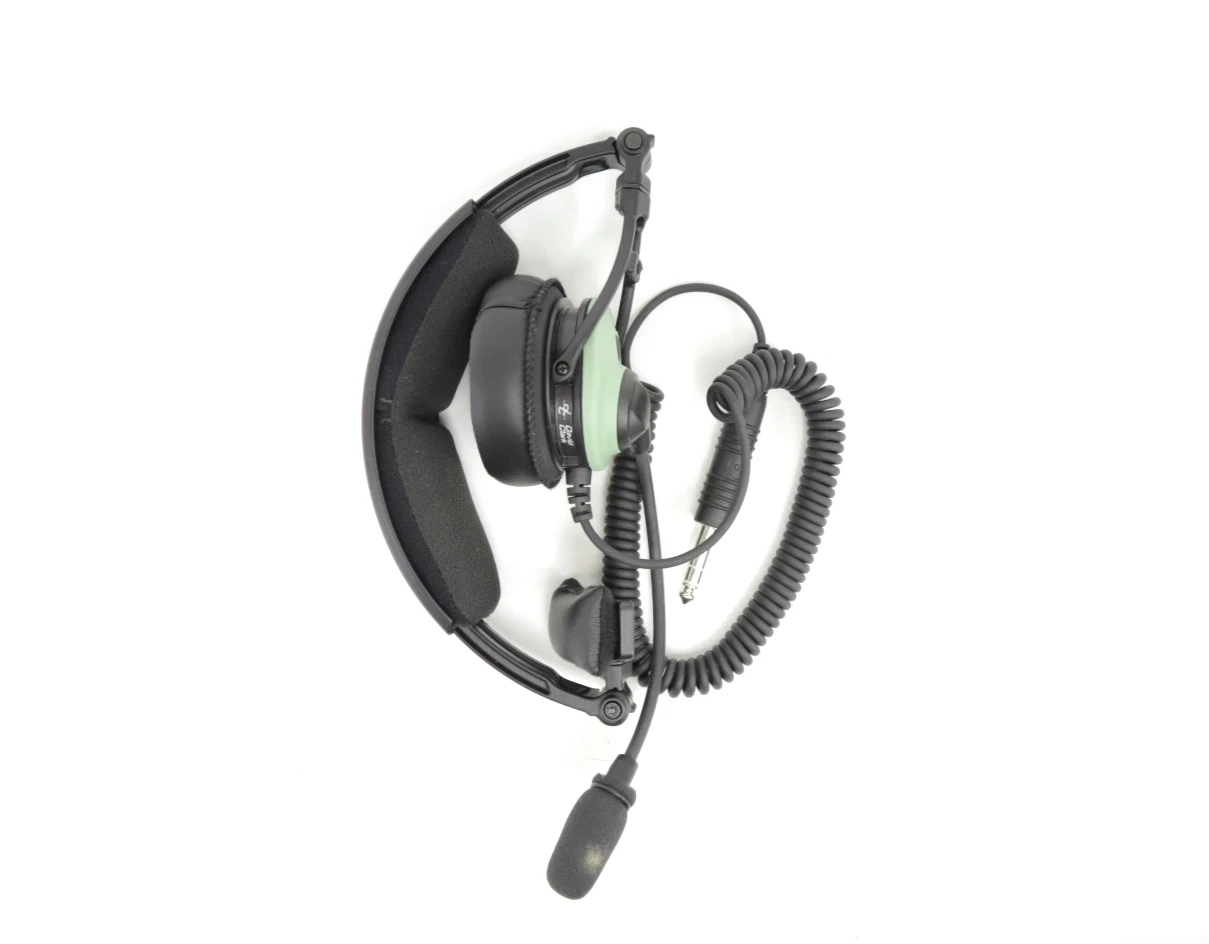

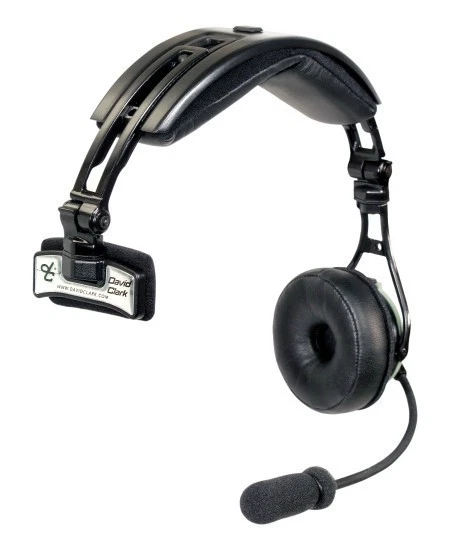

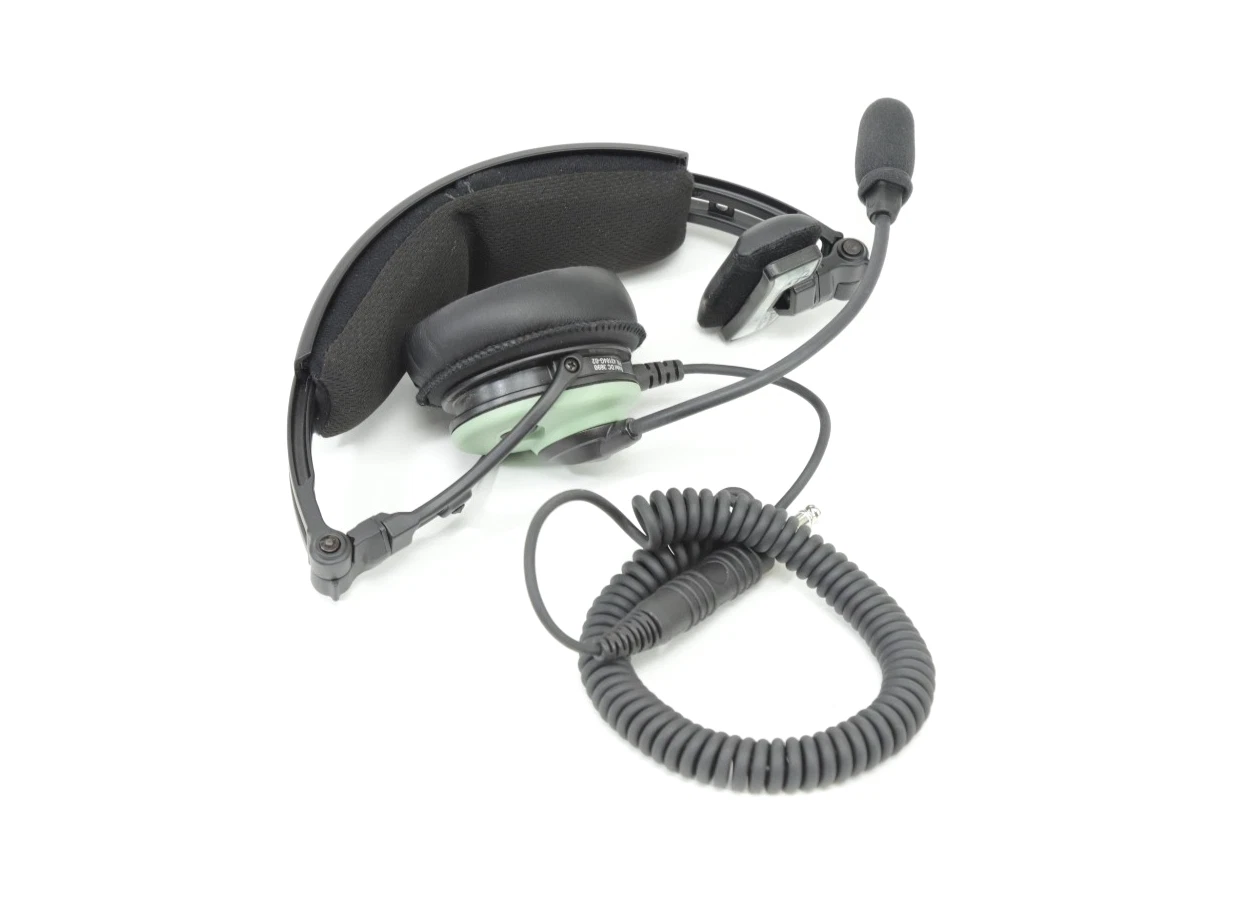

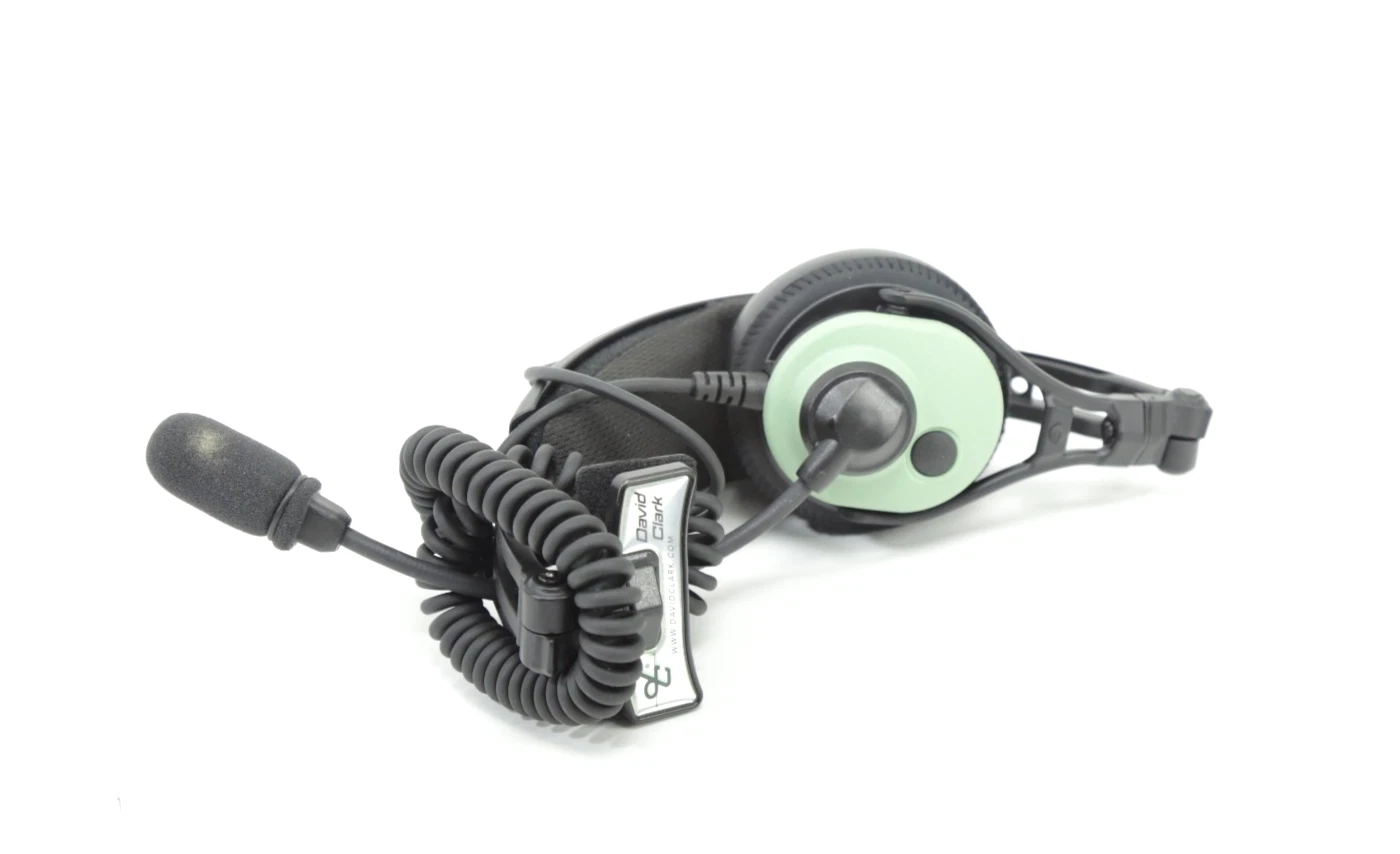

David Clark DC-3690 Single Ear Microphone Headset | 43104G-02

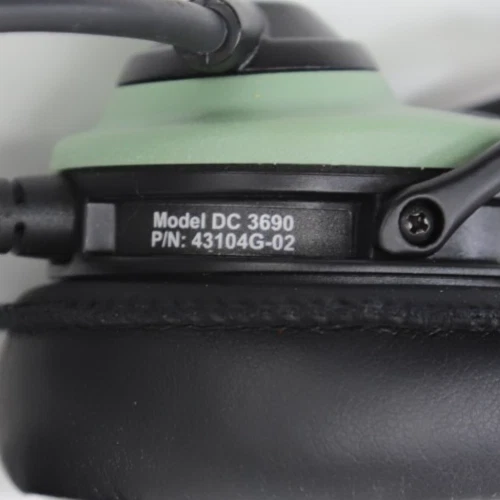

David Clark Part No: 43104G-02

Model No: DC-3690

Technical Data

Ear Coupling: On-The-Ear

Hardware: Lightweight Alloy

Dome Type: ABS

Connector Type: 1/4 Stereo Plug (TRS)

Connection Cable: 0.130' (3.3 mm) O.D. shielded cable

Transducer Principle: Dynamic

Earphone Impedance: 1200Ω (+/-10%)

Earphone Frequency Response: 100 Hz- 15 kHz

Characteristic SPL: ~91 dB SPL (1 kHz, 1 mW) @ maximum volume nominal

Total Harmonic Distortion (THD): < 1% - 110 dB SPL (300 - 3,000 Hz)

Microphone Principle: Amplified Electret

Microphone Impedance: 150Ω nominal

Microphone Sensitivity: 400 mV+/-6dB into 150Ω load @1 kHz for 114 dB SPL input

Microphone Frequency Response: 150 Hz - 8 kHz

Microphone DC Supply: 8 – 16V, not polarity sensitive

Microphone Source Resistance: 470Ω

Operating Temperature: -20°C – +55°C

Weight (w/o Cable): ~ 6.3 oz. (179 g)

Made In USA
