Eaton Vickers V20F Series Single Act Power Steering Pump

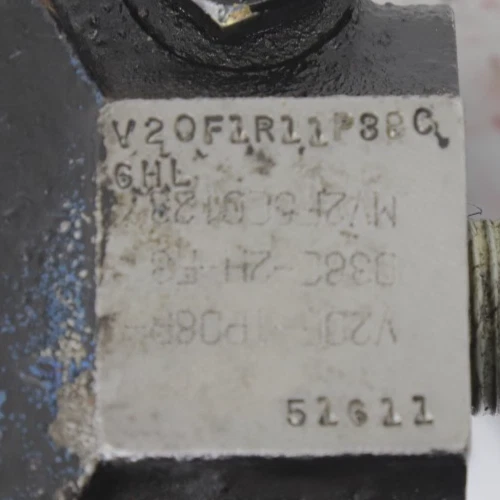

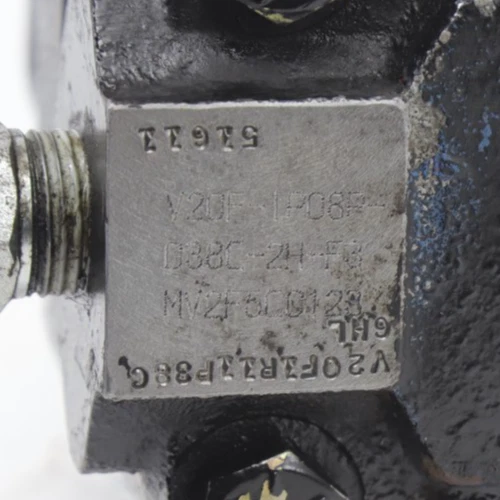

Eaton Part No: V20F-1R11-P38C-6H-L | V20F1R11P38C6HL
Modeling Code
Vane Pump: V
Series Designation: 20
Cover Type: F - Flow Control Cover
Mounting: 1 - Flange, 2 bolt SAE A Size
Inlet Port Connection: R - 1" NPTF
Ring Capacity: 11 - 11 USgpm
Outlet Port Connection(s): P 3/4 NPT Thd (11 & 12 designs only - Pressure .750-16 St.Thd
Shaft Seal Type: Omit Single Lip Seal and sealed bearings

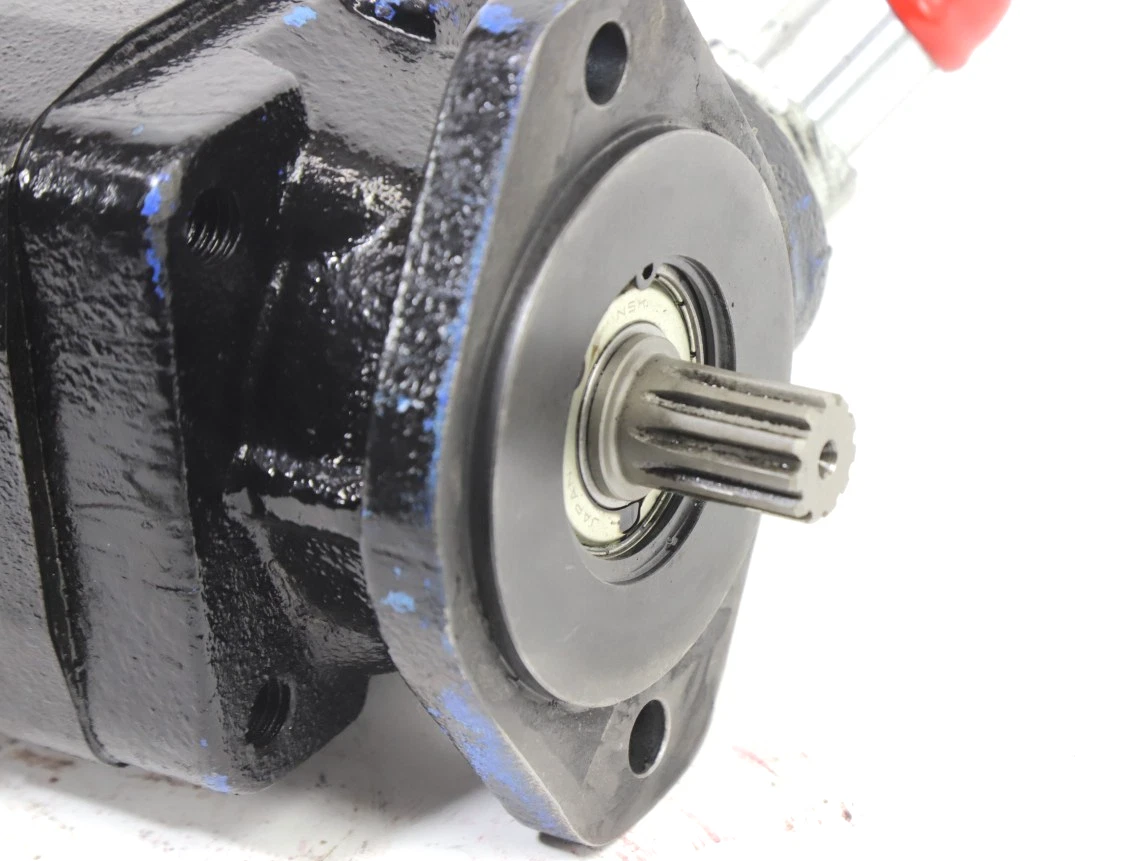

Shaft Type: 3 - Threaded
Outlet or primary outlet port positions: In Line with Inlet
Flow Rate: 6 - 6 USpgm
Pressure Setting: V20F: H - 2000 PSI
Rotation: Left Hand Counterclockwise

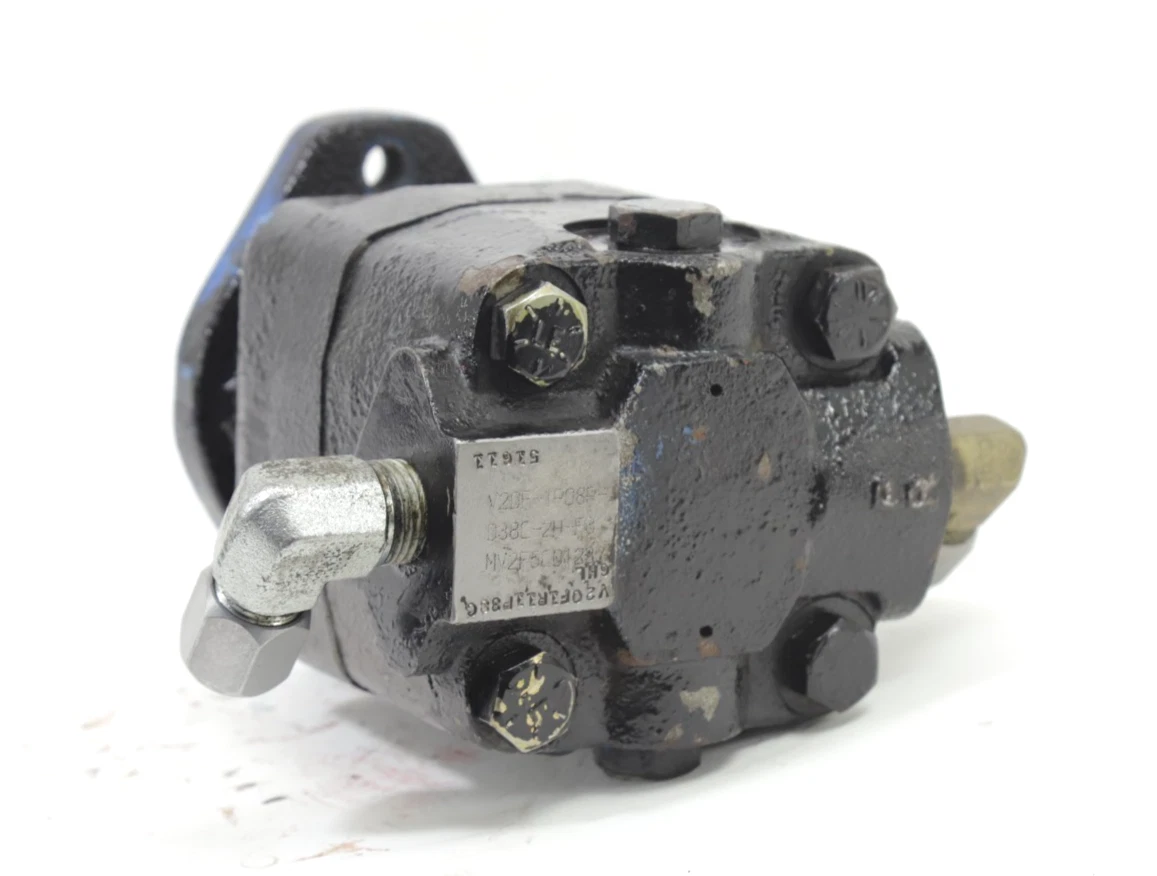

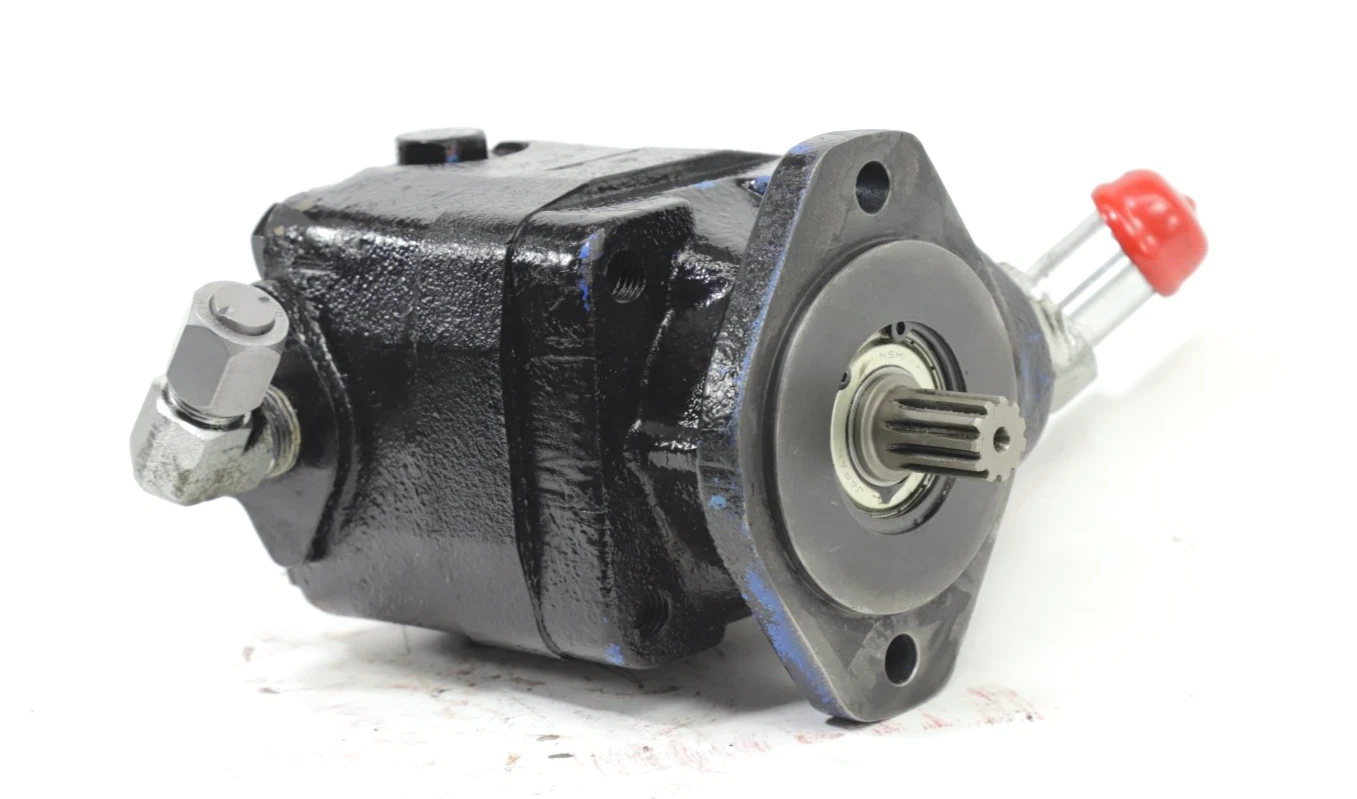

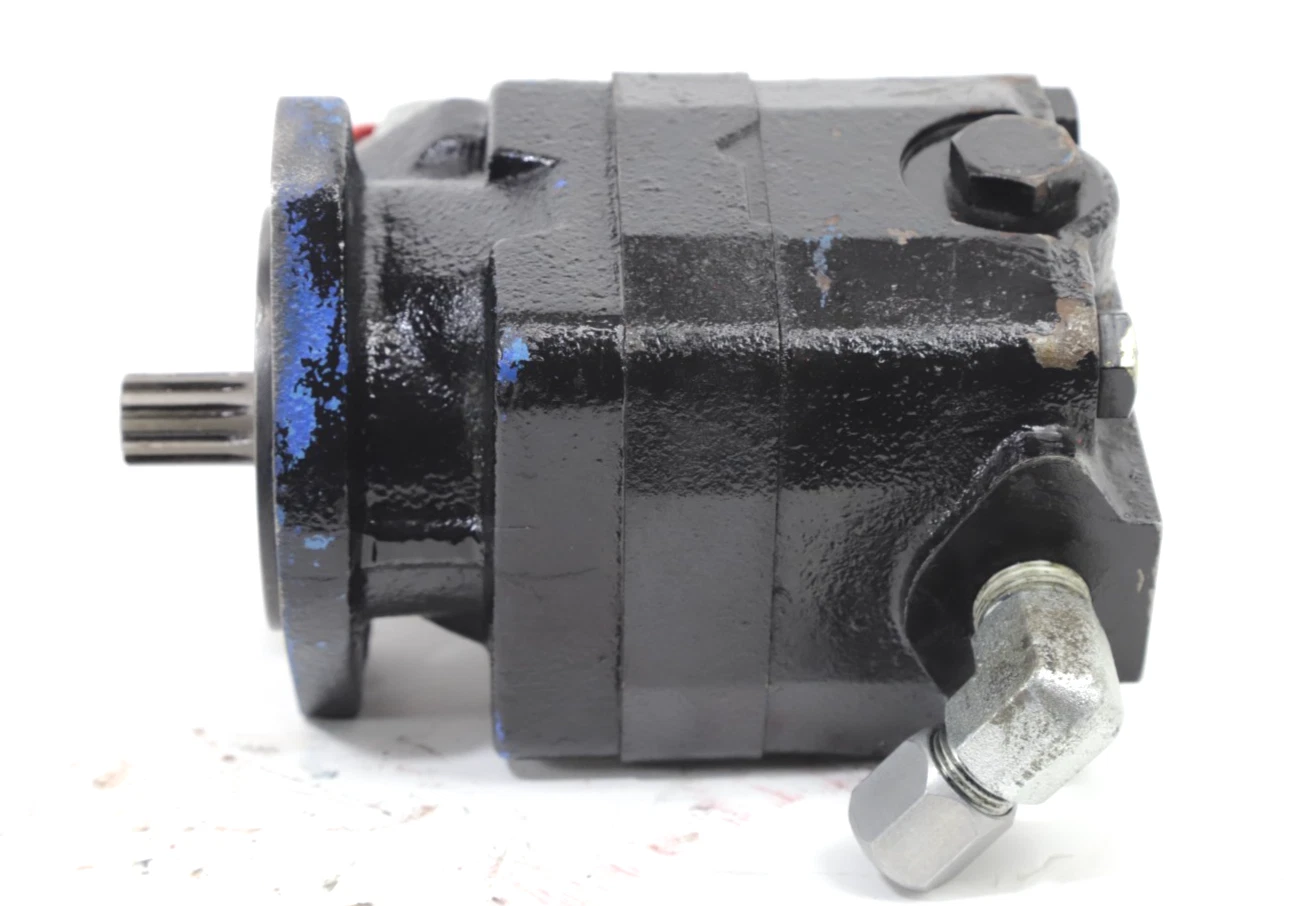

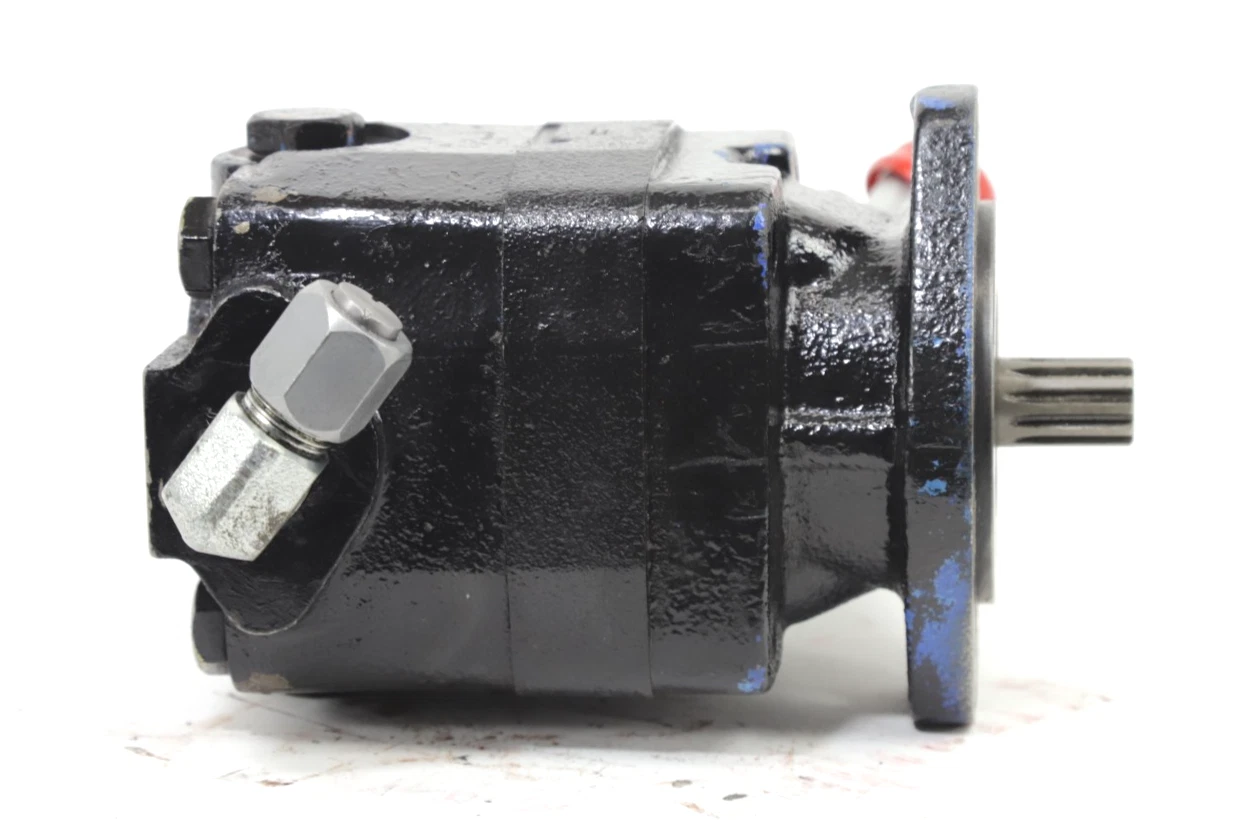

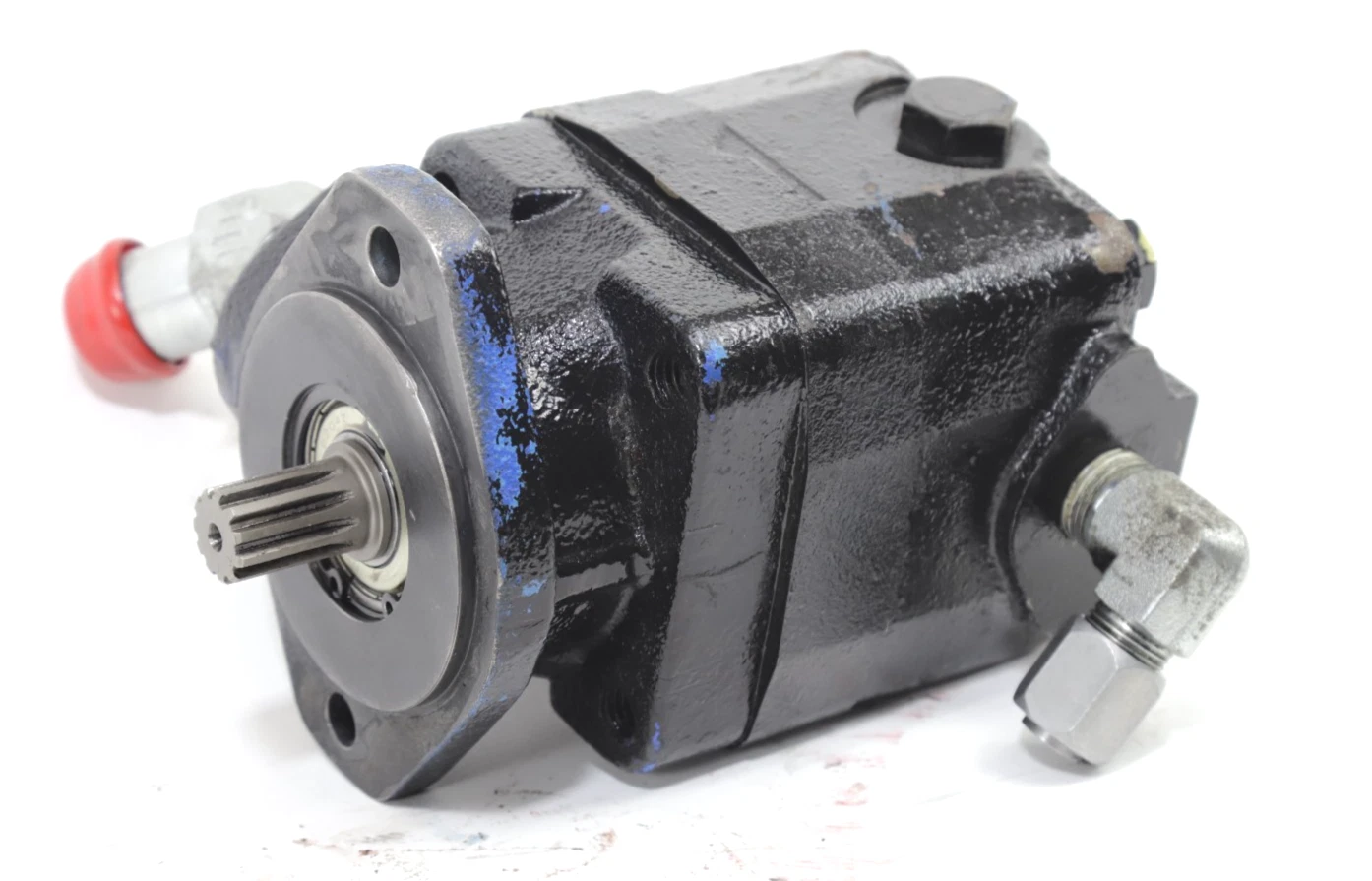

Good used Eaton Vickers V20F single-acting vane-type power steering pump, part number V20F-1R11-P38C-6H-L. Removed from a running chassis and inspected — no cracks, housing intact, shaft turns freely, no signs of internal metal contamination
SHIPS FAST:
Small, light part — ships same or next business day via UPS/FedEx
Ground in a padded box.
Local pickup available in the Sacramento, CA area.
