OEM Parker Chelsea 276 Series Power Take Off PTO

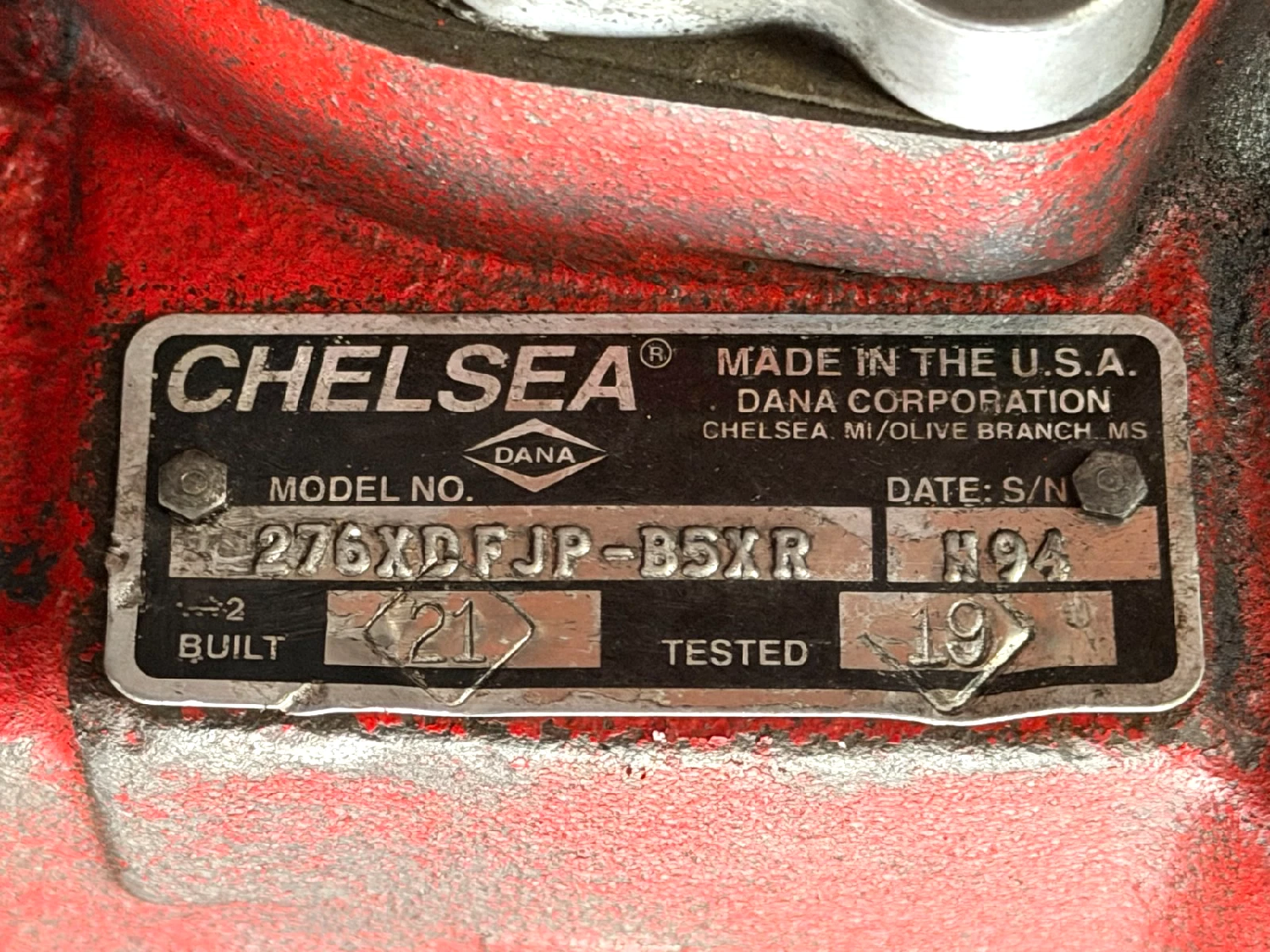

Part No: 276XDFHP-B5XR
Date Serial No: H94
Basic Model: 276
Mounting Type: X = Standard Mounting

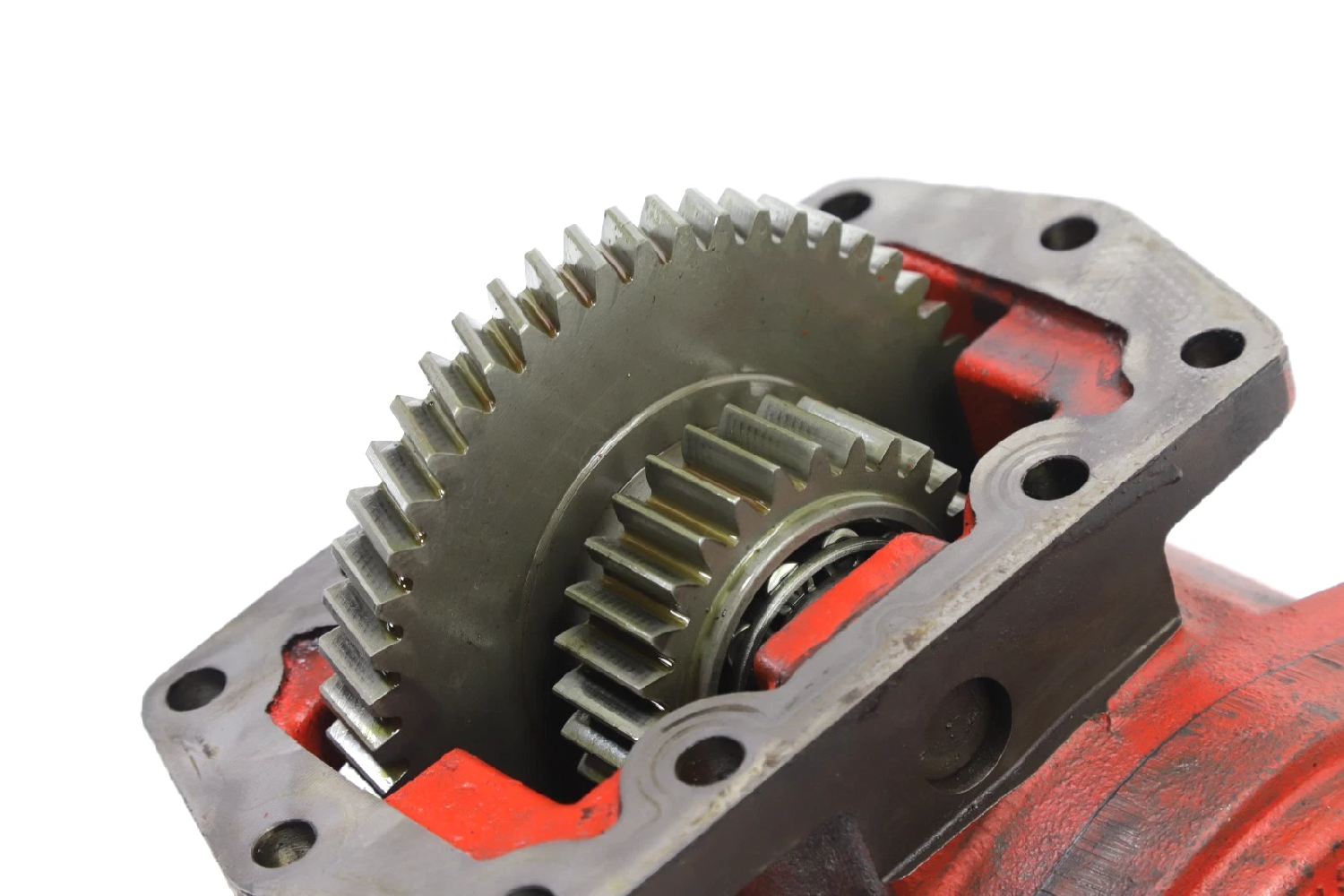

Gear Ratio: D 28/44
Input Gear Designator: FJ = 10.16 Pitch 20° 19.2654° R.H.
Lubrication: Pressure Lube

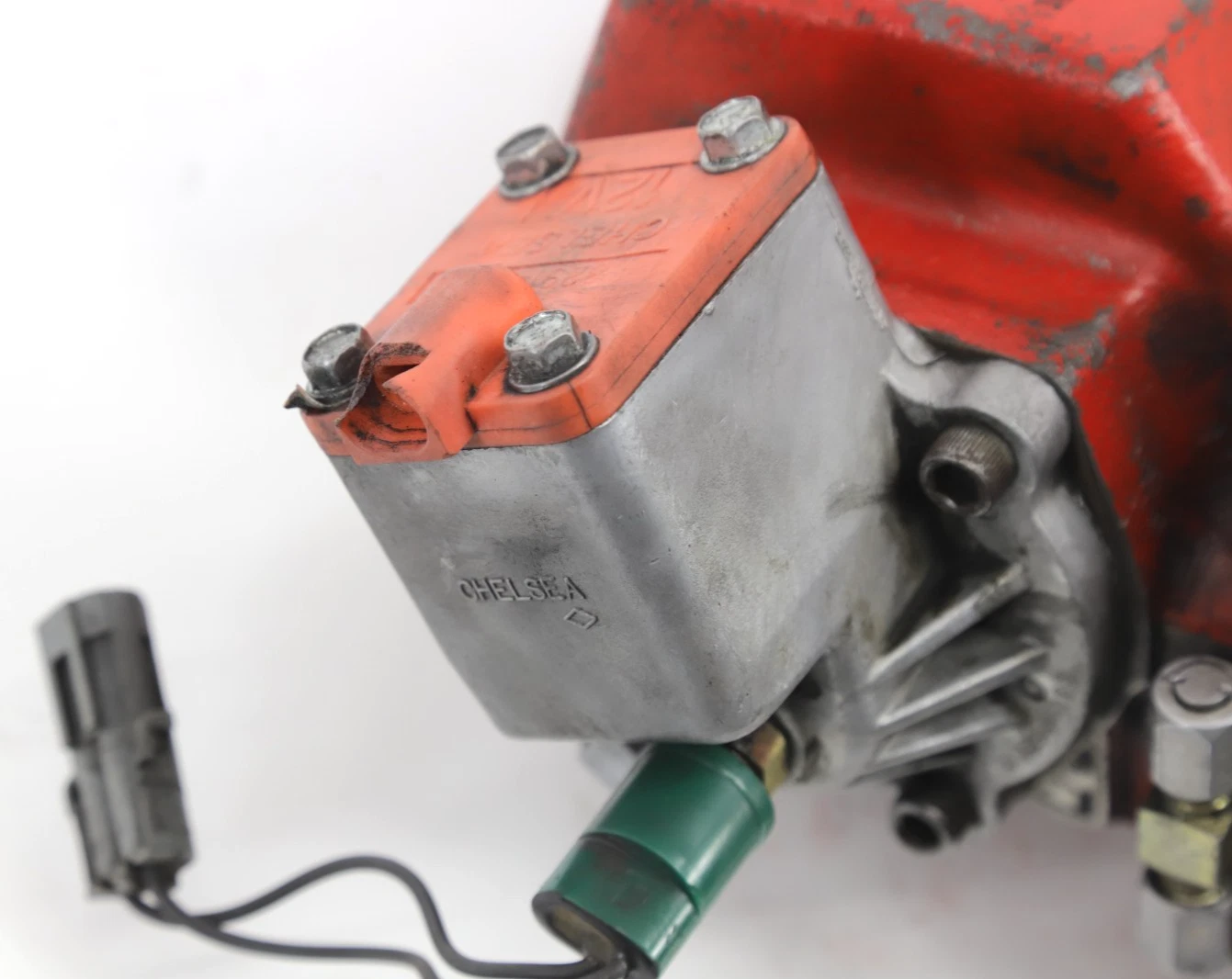

Shifter Type: 12 Volt Hydraulic Valve
Assembly Arrangement: Gear Forward Shaft Rear
Output Type: Chelsea Special 7/8" - 13T

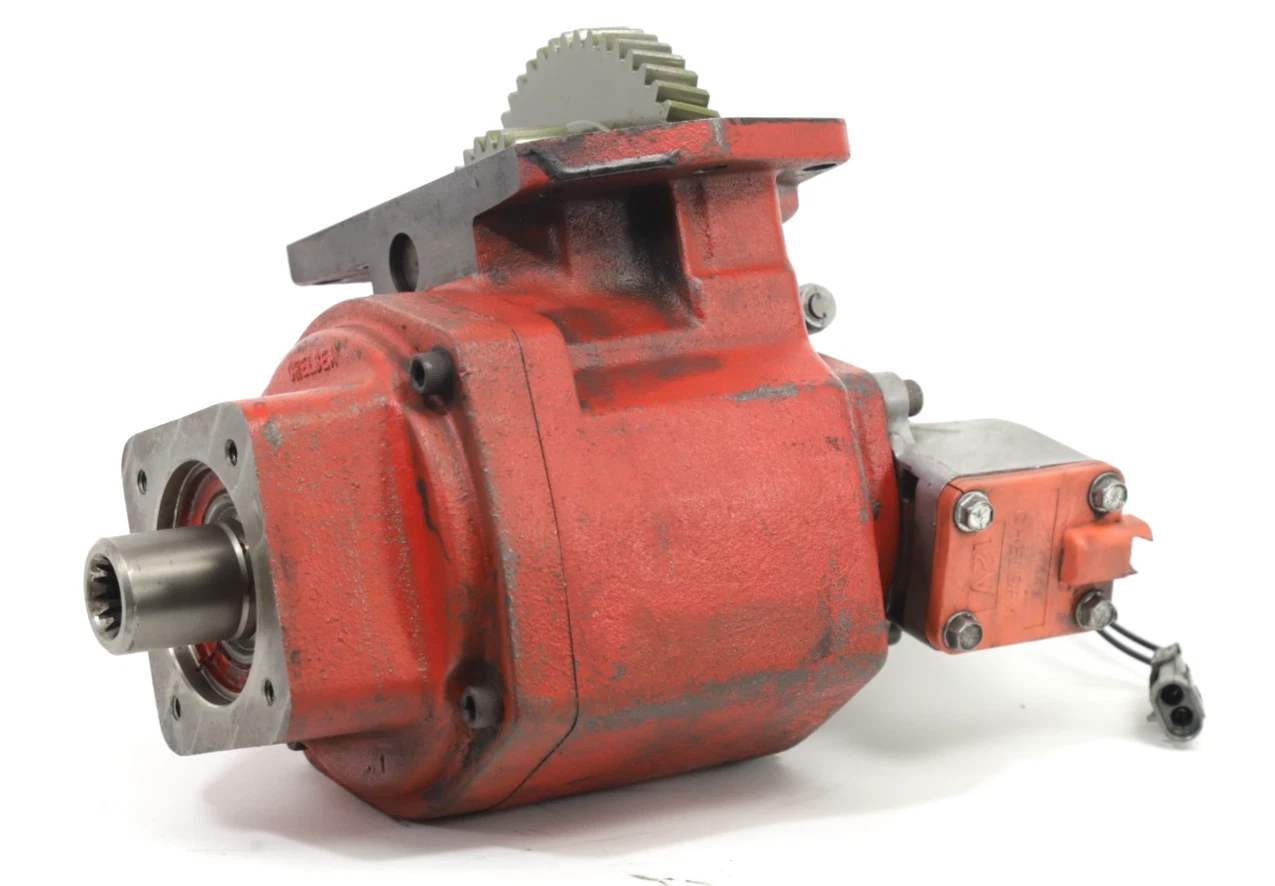

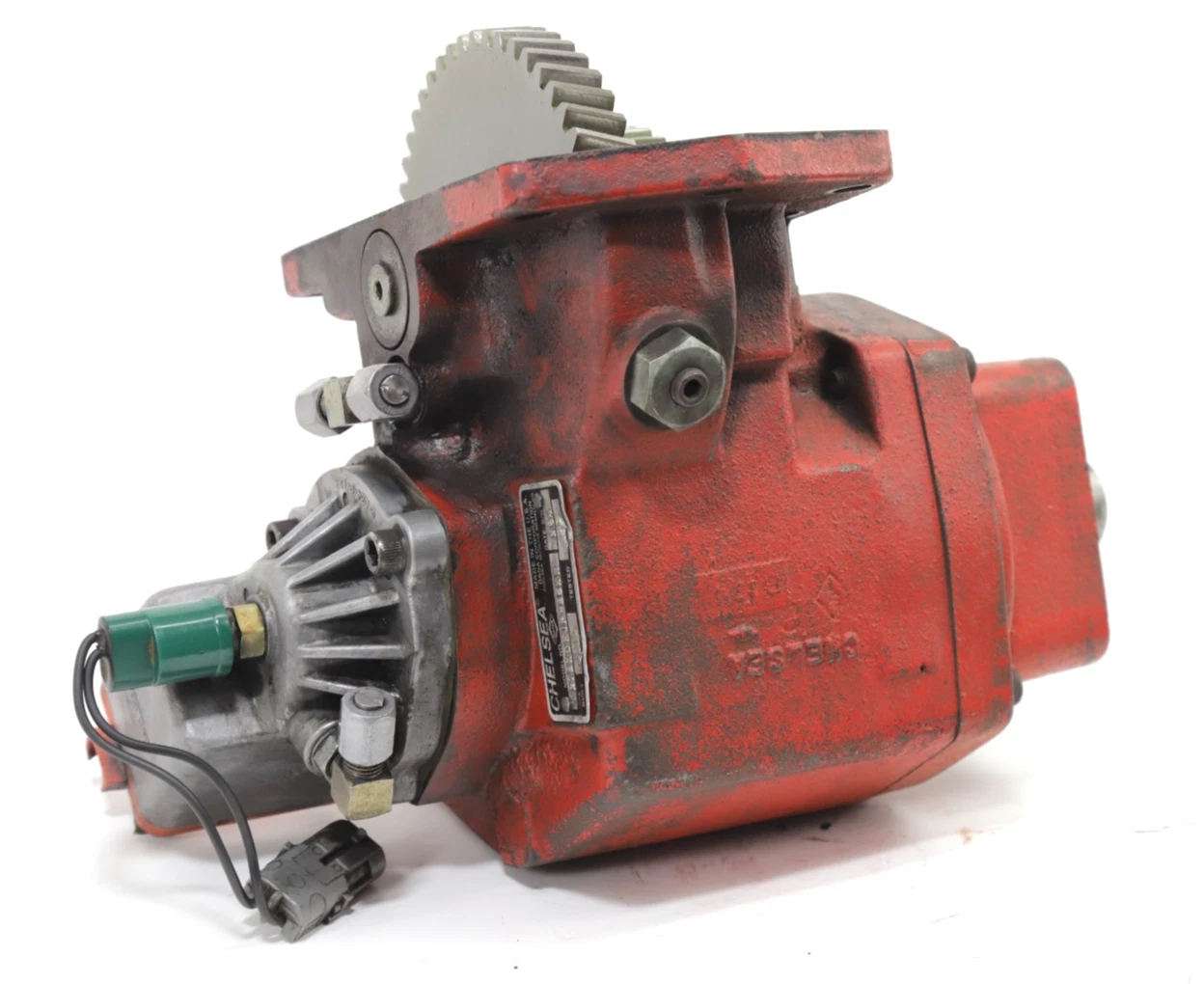

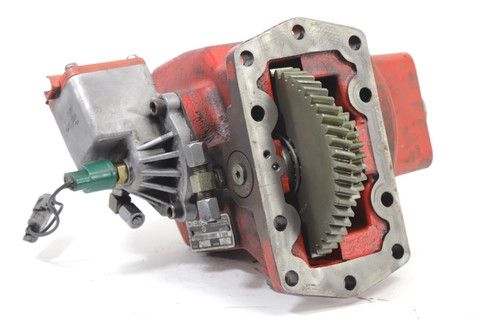

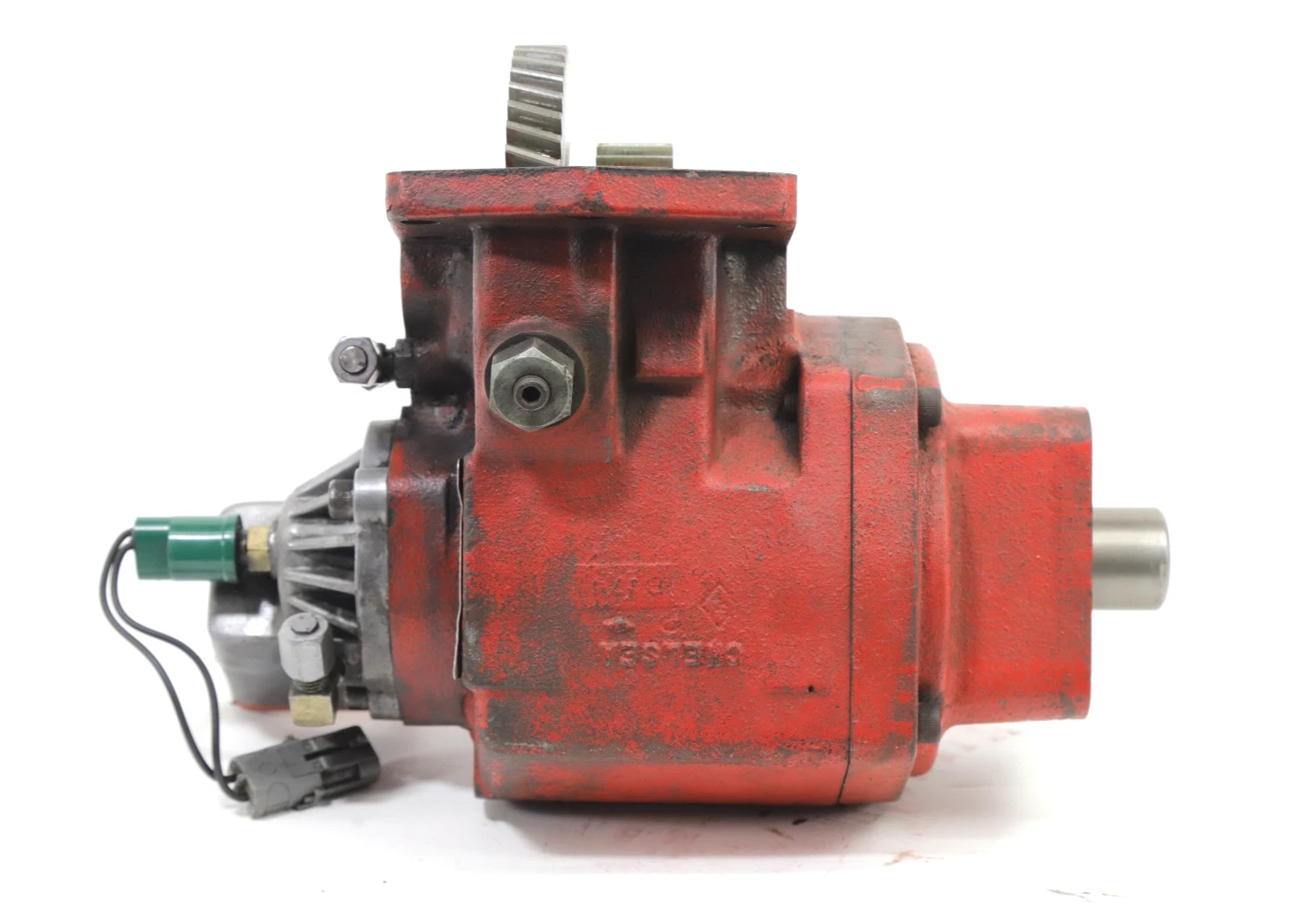

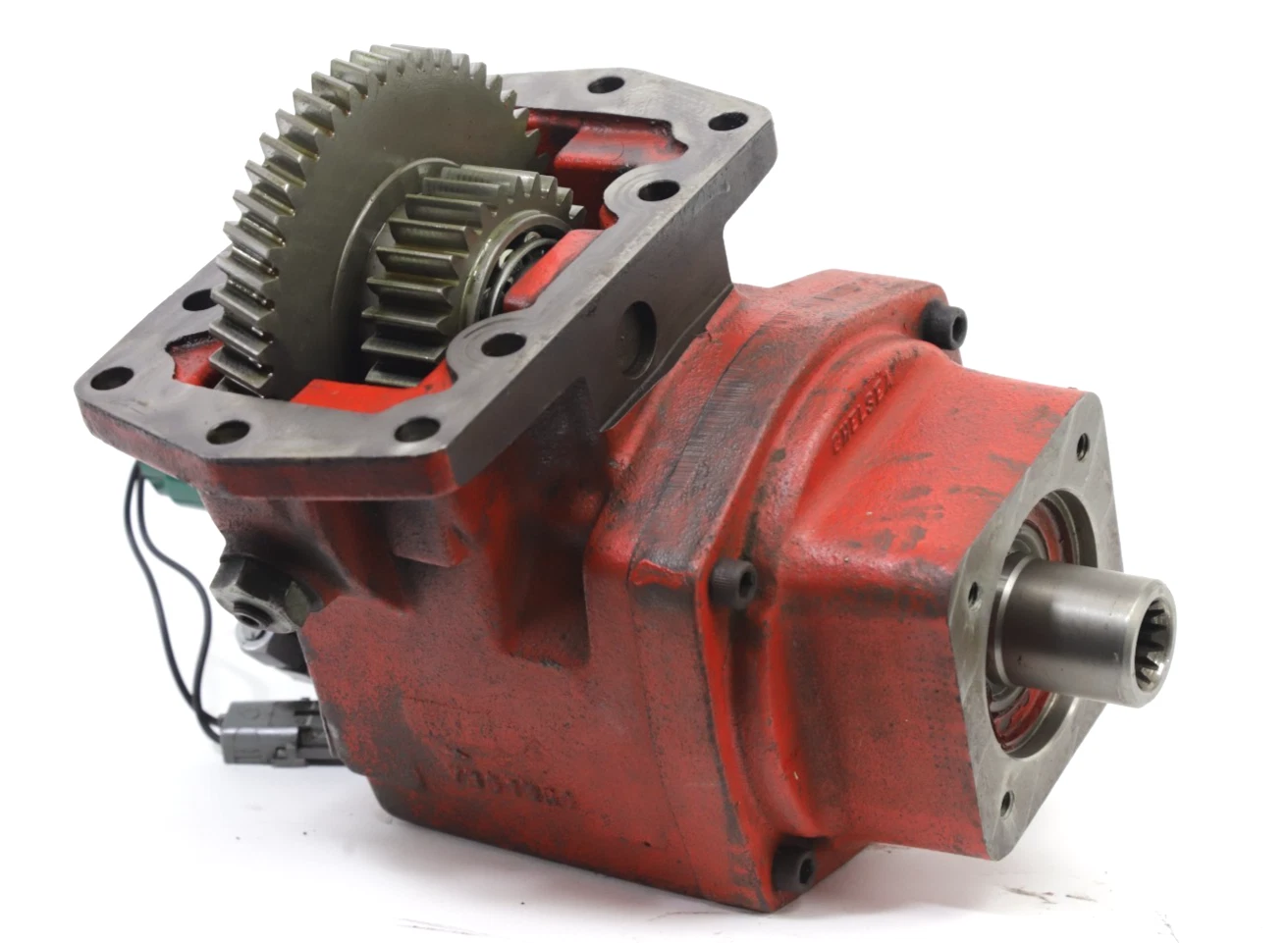

Take-off Parker Chelsea 276 Series Power Take-Off, model 276XDFHP-B5XR. Tested and confirmed running before removal — this isn't a core, it's a verified functional unit ready to install.
The 276 series is Chelsea's mid-size PTO platform, rated 30 HP at 500 RPM and 60 HP at 1000 RPM, built for vocational trucks running Allison and comparable transmissions. This unit is pressure-lubed with 12V electric/hydraulic shift, SAE "B" output on a rotatable 2/4-bolt mount with 7/8"–13T spline, arrangement #5, 31/41 gear ratio
Small, light part — ships same or next business day via UPS/FedEx
Ground in a padded box.
Local pickup available in the Sacramento, CA area.
Made in USA
