Rockwell RR23 Series 5.38 Ratio (23GAWR) Axle Assembly

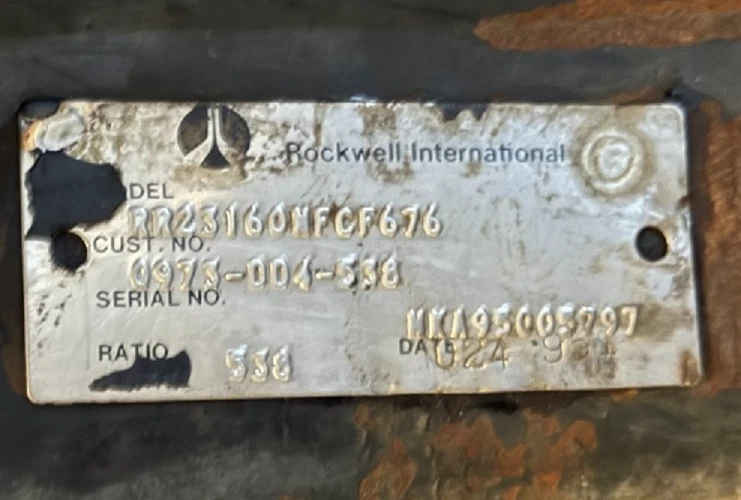

Model No: RR23160NFCF676
Cust No: 0973-004-538
Serial No: NKA95005797

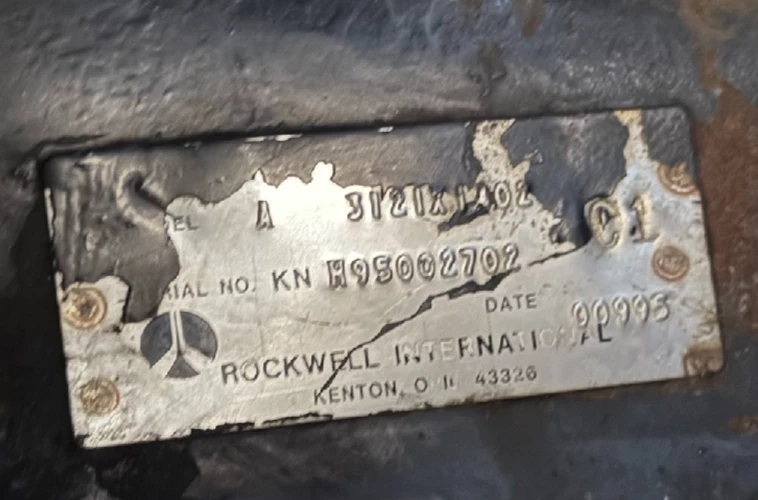

Additional Model No: A 3121X1402
Additional Serial No: KN H95002702
Date: 00995
Ratio: 5.38

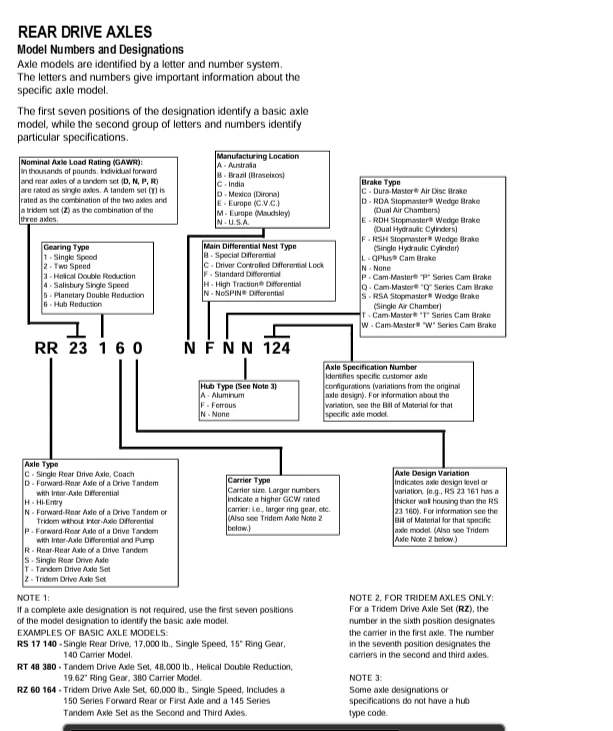

Modeling Code:
RR: Rear-Rear Axle of a Drive Tandem
23: Nominal Axle Load Rating
1: Single Speed Gearing Type
6: Carrier Type
0: Axle Design Variation
N: Manufacturing Location - USA
F: Standard Differential Nest Type
C: Brake Type - Dura-Master Air Disc Brake
F: Hub Type - Ferrous
676: Axle Specification Number

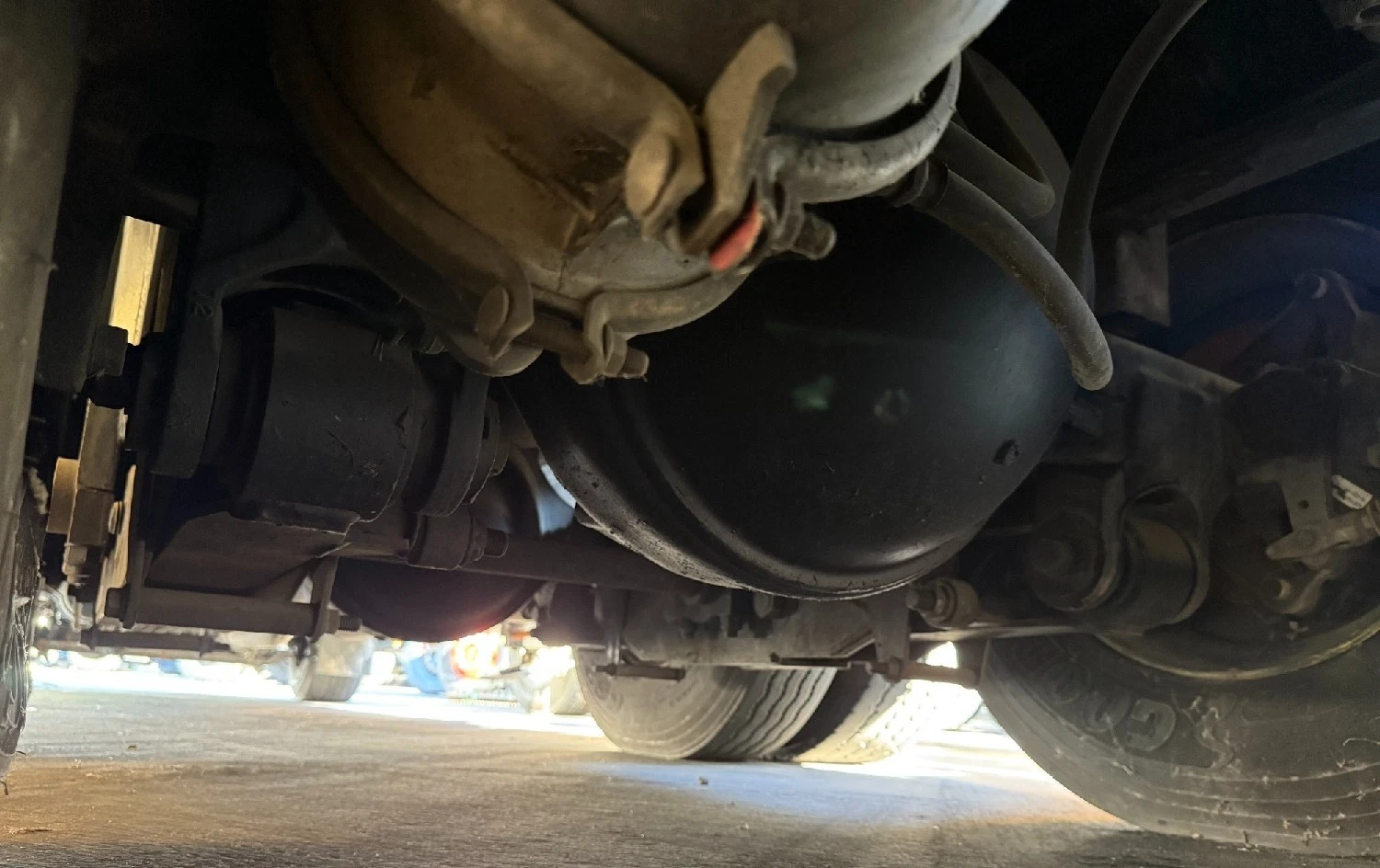

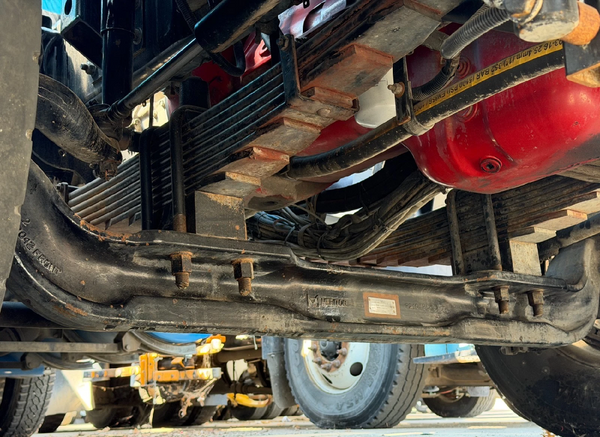

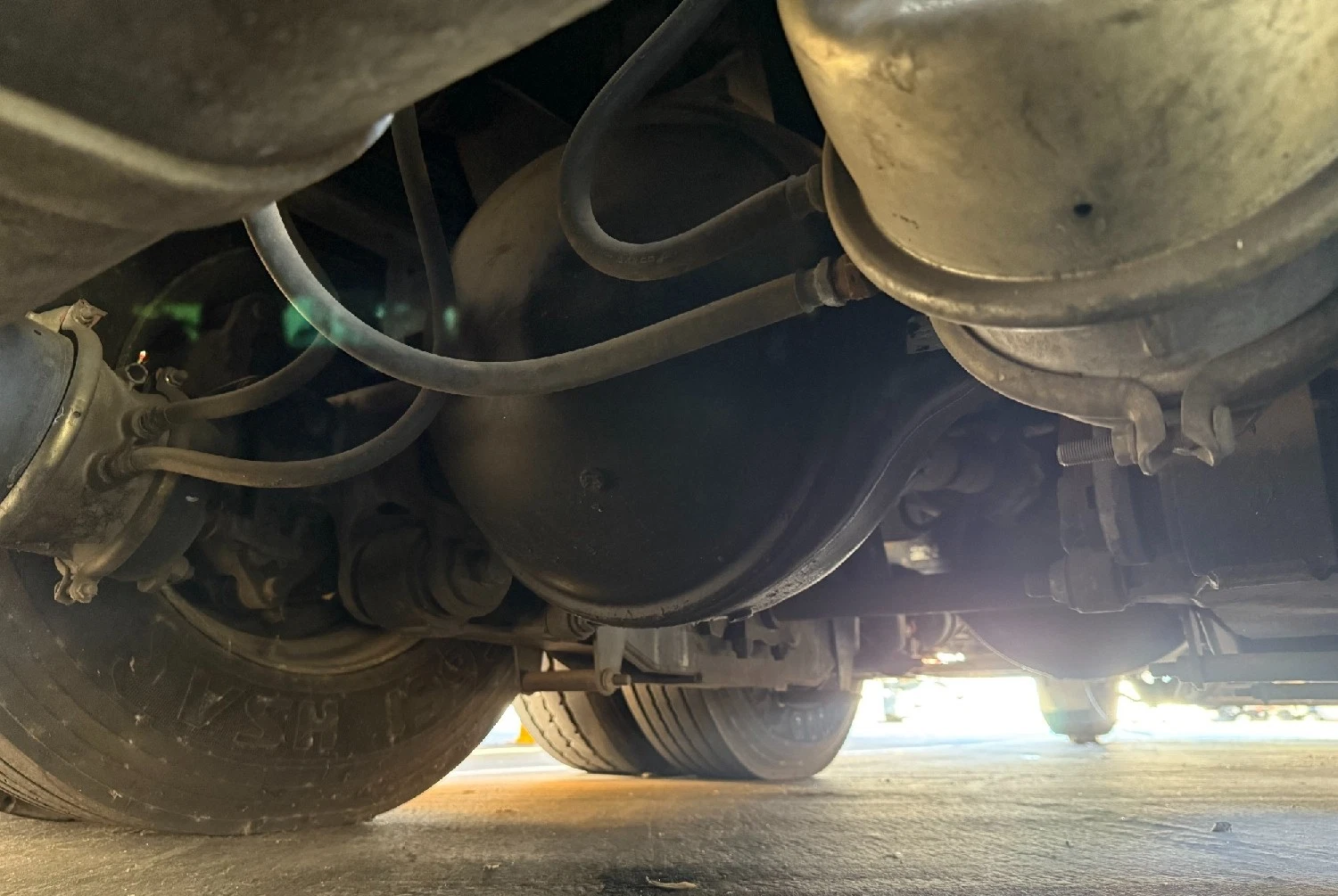

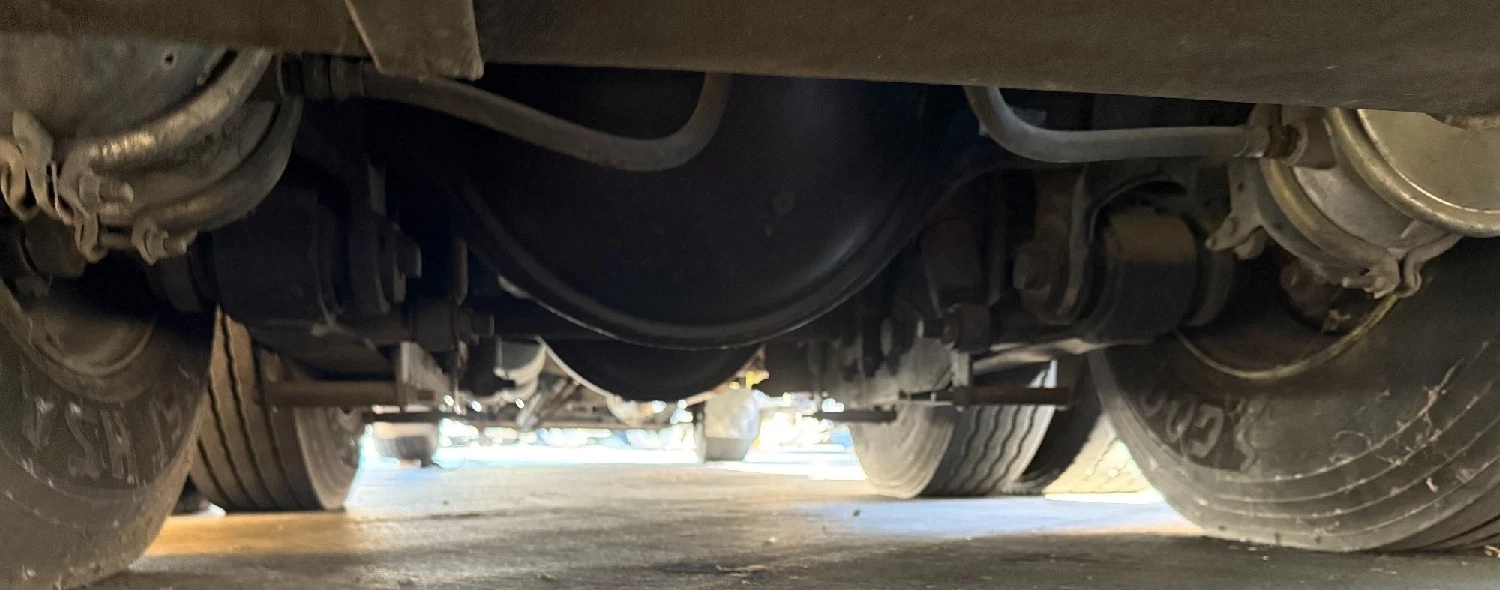

Advertised as a good used take-out. complete assembly with hubs, brake drums, and leaf springs
ArvinMeritor RR23160 rear-rear drive axle assembly, 5.38 ratio, 23,000 lb GAWR. Model RR23160NFCF676.This is the rear-rear axle from the Meritor RT46-160 tandem series, common on dump trucks, mixers, refuse trucks, and other vocational applications. It has 46-spline axle shafts and a 46-spline input. It pairs with a 5.38 ratio RD23160 forward-rear axle.
This is a large freight item. Local pickup available in the Sacramento, CA area — message us to arrange. Freight shipping quoted on request; buyer responsible for freight cost on items shipped LTL.
