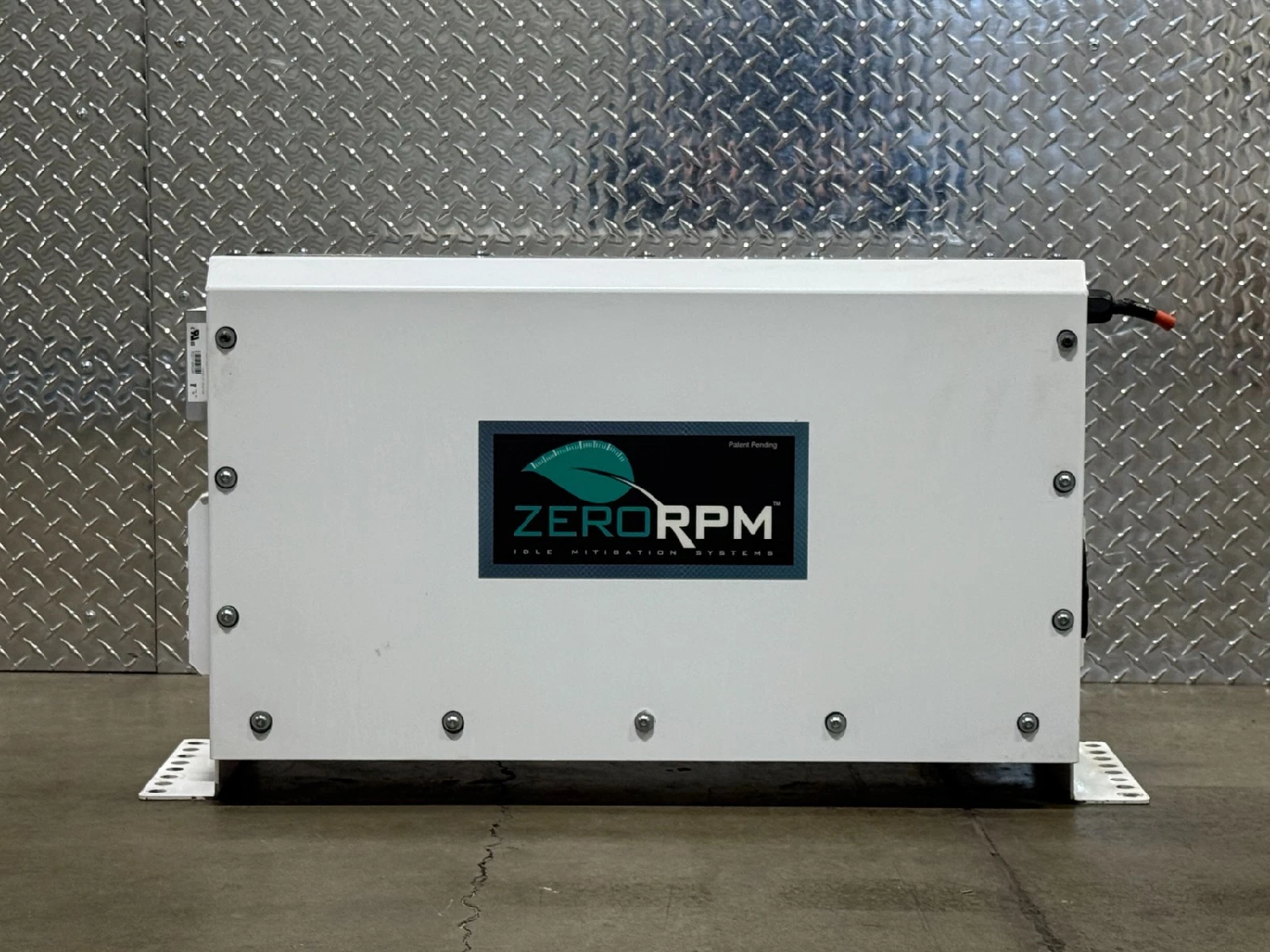

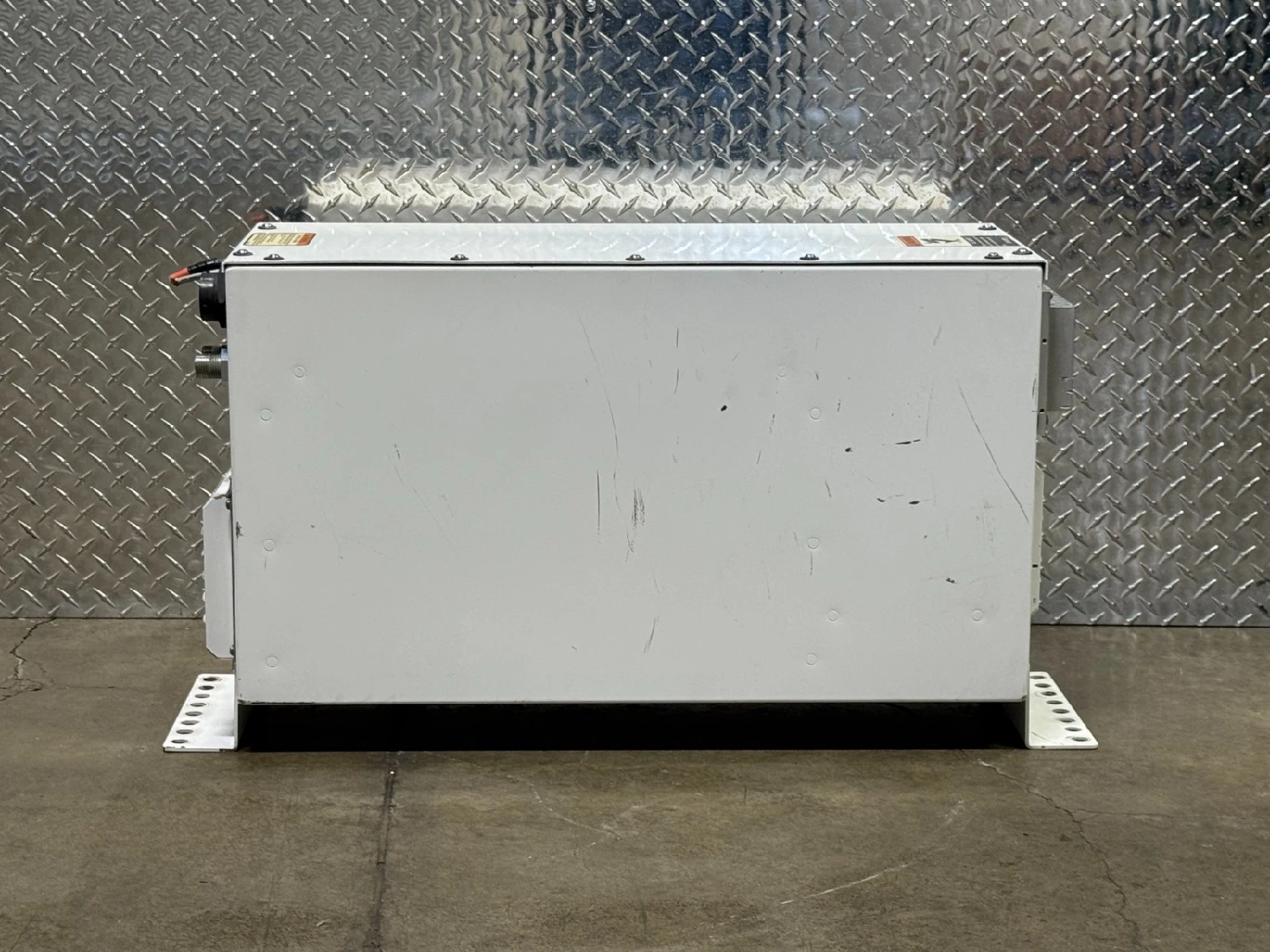

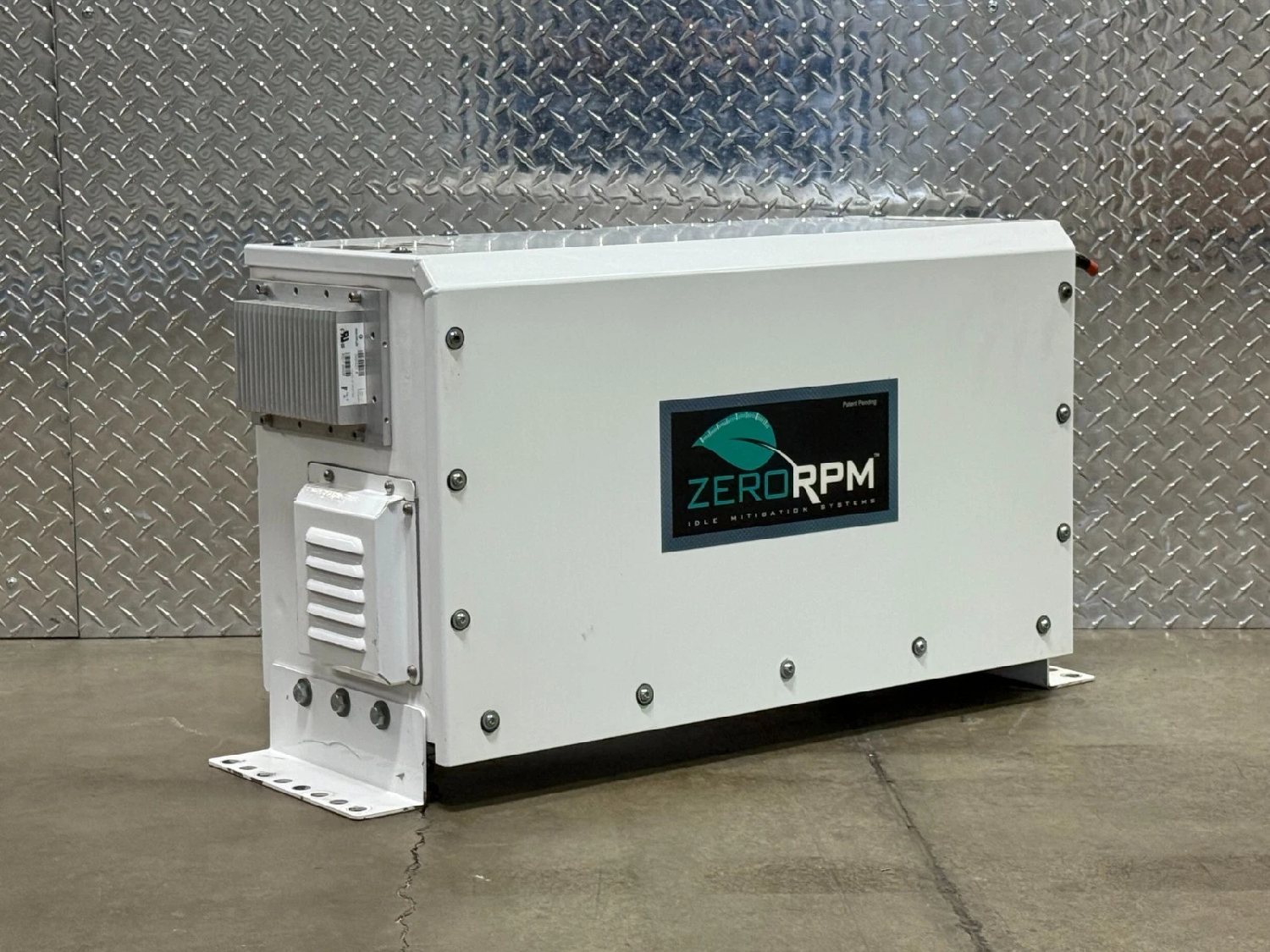

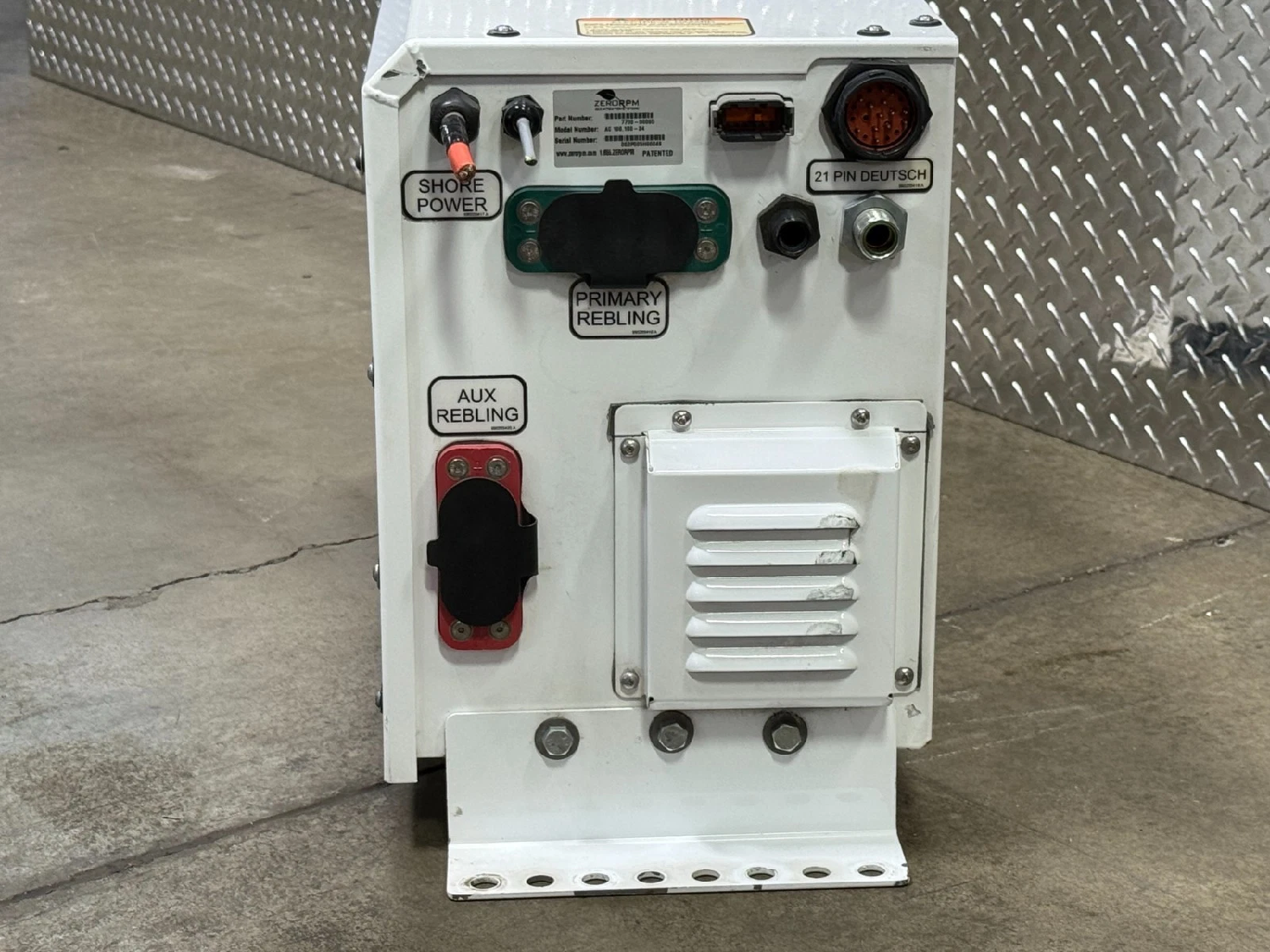

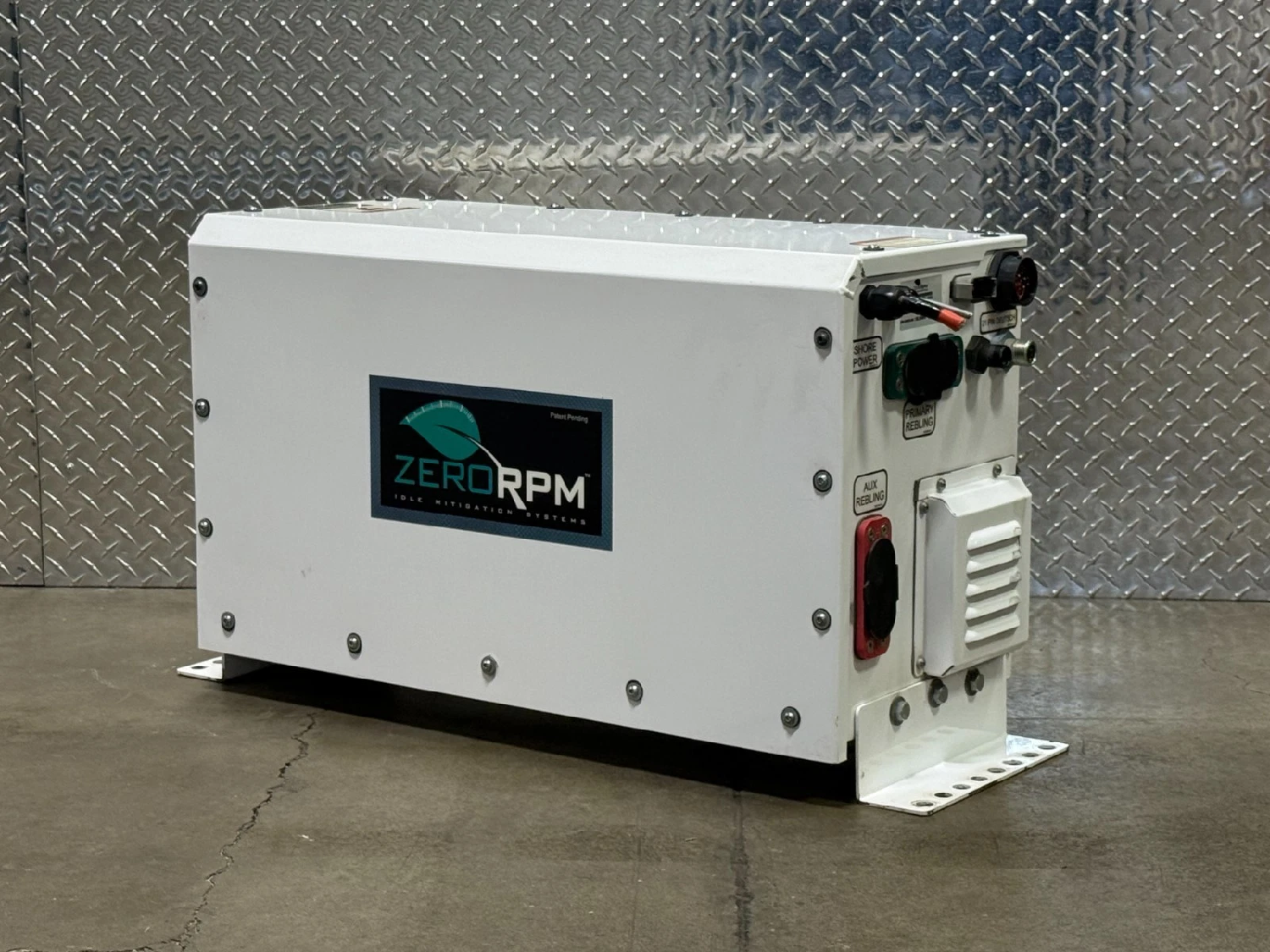

ZeroRPM A/C Idle Mitigation System

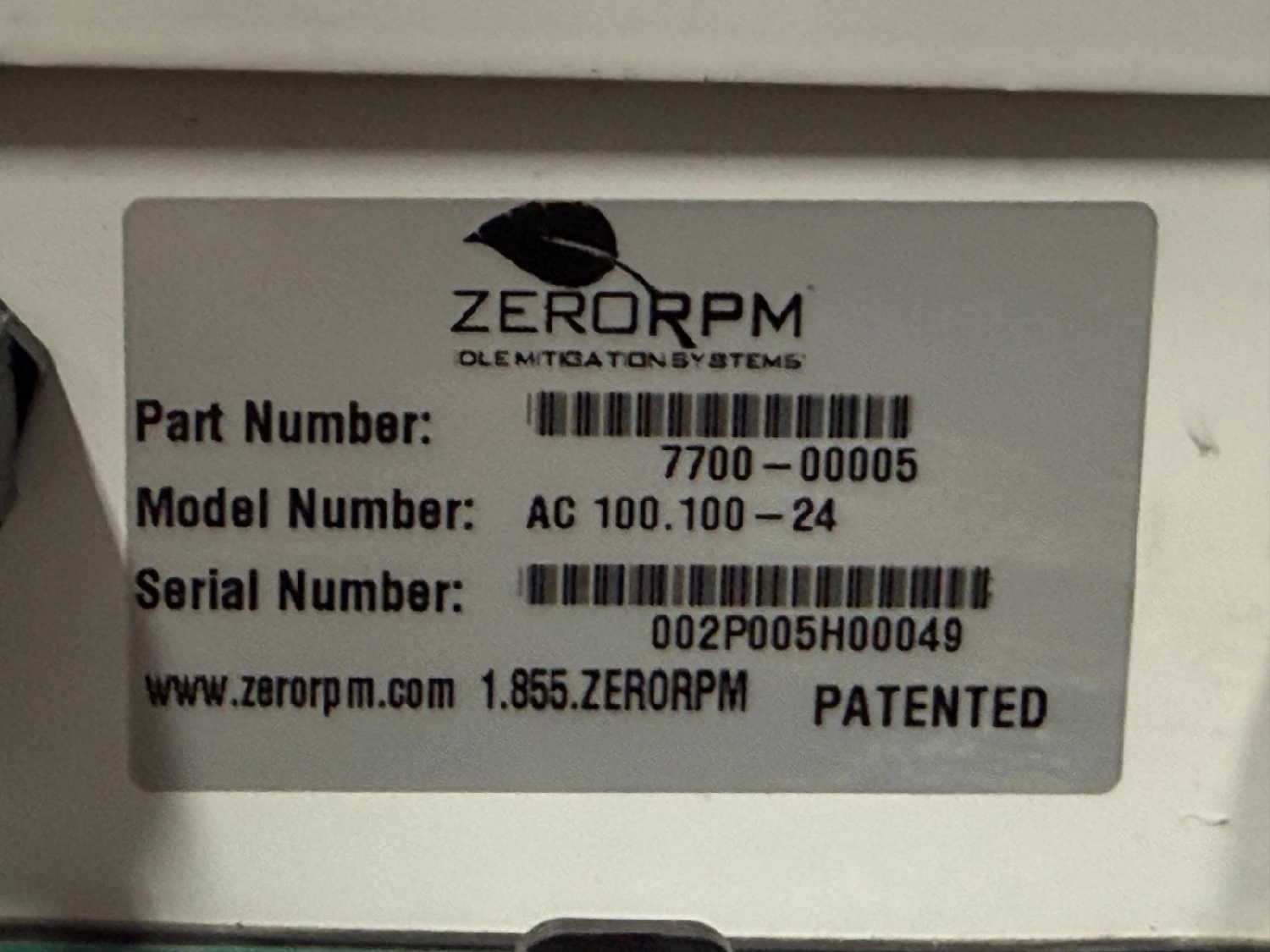

Zero RPM Model No: AC 100.100-24

Part No: 7700-00005

Serial No: 002P005H00049

Specifications

Cooling Capacity: ~11, 800 BTU (at target evaporator and condenser temp

Total Energy: 3.8 kwh

Usable Energy: 3.04 kwh

Current Limit Export Primary: 285 @ 100% Duty Cycle @ 12v

Current Limit Export Auxiliary: 285 @ 100% Duty Cycle @ 24v

Output Voltage Primary: 12v-14.1v

Output Voltage Auxiliary: 24v-28.2v

Charge Voltage: 12v-14.2v

Nominal Voltage Primary: 12.8v

Nominal Voltage Auxiliary: 25.6v

Battery Chemistry: Lithium Iron

Number of 12V Battery Packs: 3

Internal Fuse Rating Battery Protection (Slow Blow: 350A

Product Housing Material: Powder Coated Galvanized Steel with Aluminum lid

Charging Temperature Range: 32°F to 140°F / 0°C to 60°C

Discharge Temperature Range: -4°F to 150°F / -20°C to 65.6°C

A/C Fitting Sizes: #8 Pressure / # 10 Suction

Compatible Freon Types: R-1234YF or R134a

Made In USA
